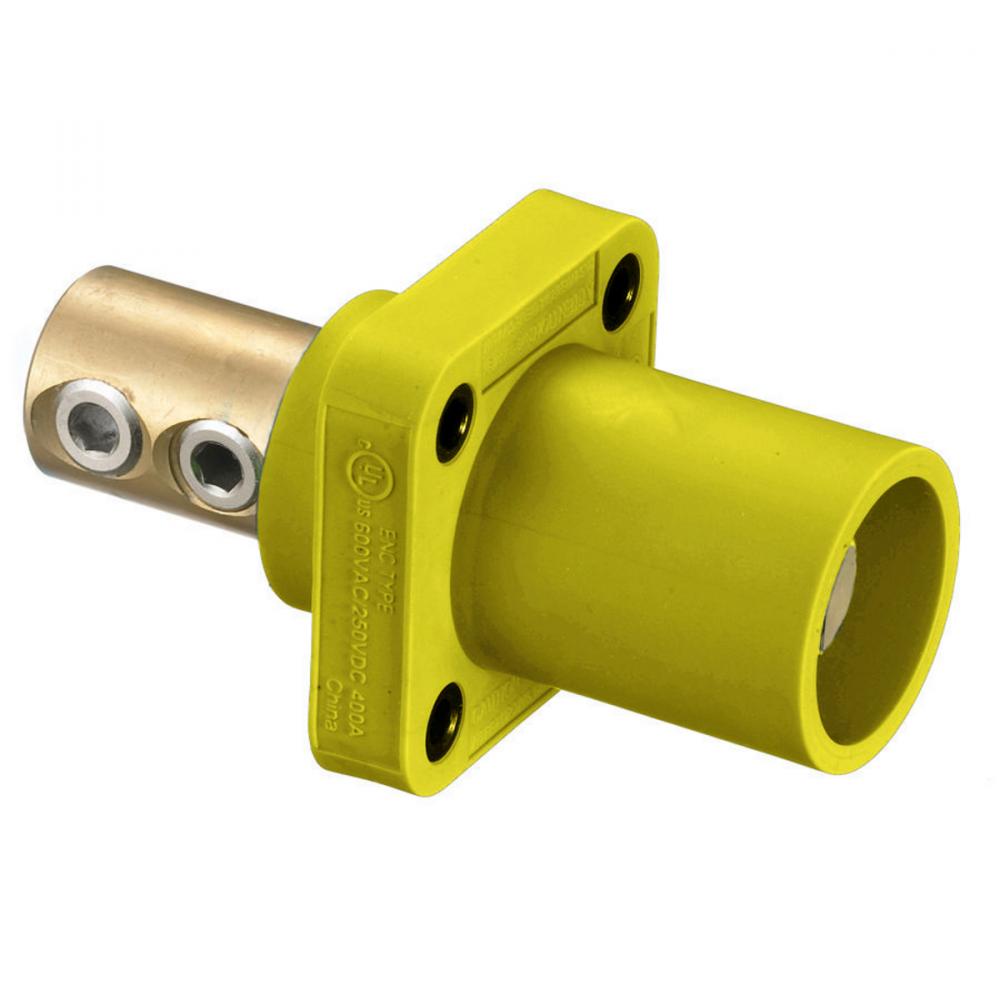

HBL HBLMRY by Hubbell Wiring Device-Kellems
- Part Number: HBLMRY
- UPC: 00783585113081
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBLMRY SINGLEPOLE, 300/400A MA
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
400
Application:
High Ampacity Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Screw Terminals
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
1-Pole
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard Product
Standard:
National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Sub Brand:
Single Pin Male
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
600 AC/250 DC
Warranty Link:
Wattage:
240,000
Weight:
.178 L
Wire Size:
#4 AWG to #4/0 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
