HBL HBL9977C by Hubbell Wiring Device-Kellems
- Part Number: HBL9977C
- UPC: 00783585013121
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

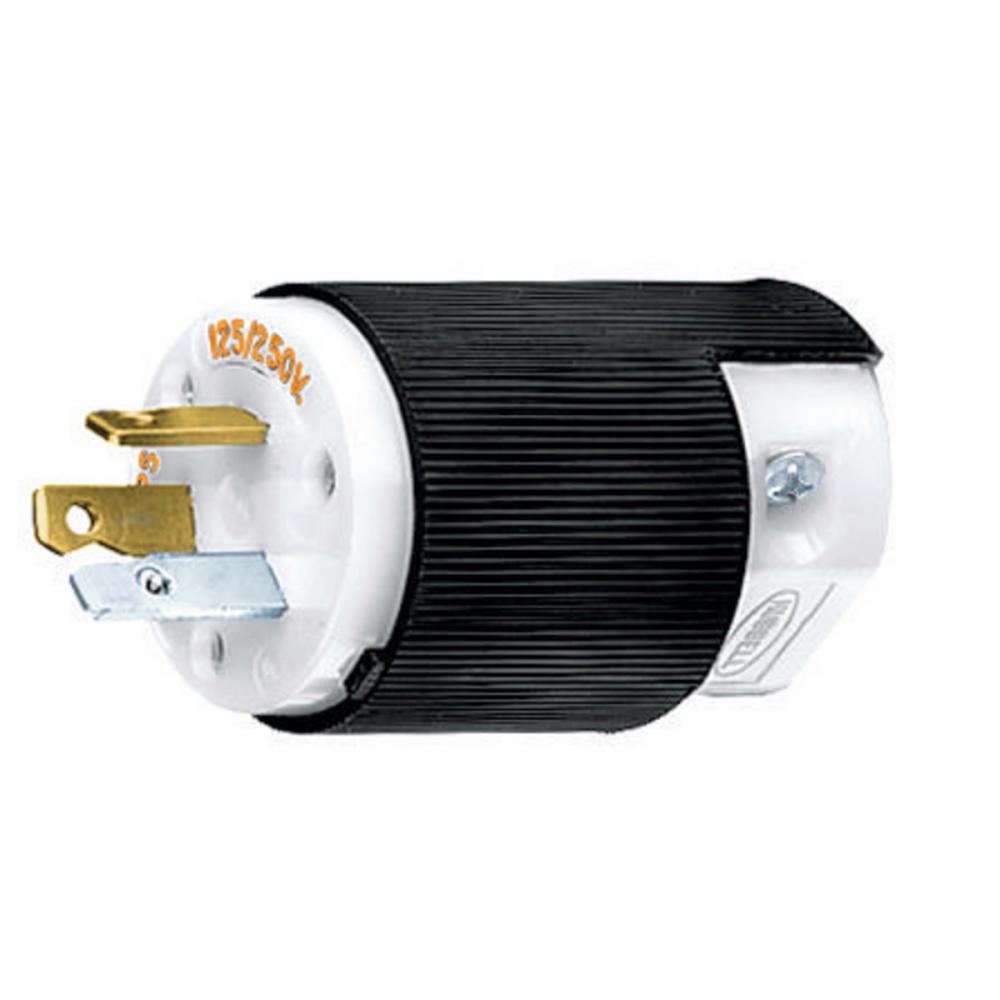

HWDK HBL9977C PLUG, 20A 125/250V, 3
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
20
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Terminal Screws
Cord Type:
All Portable
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
10-20P
Number Of Poles:
3-Pole
Number Of Wires:
3-Wire
Phase:
Single
Size:
2.5 in x 1.31 in x 1.31 in
Spec Sheet:
Special Features:
Angled, 4-Position
Standard:
CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Sub Brand:
Straight Blade Devices
Type:
Plug
UNSPSC:
39121402
Voltage Rating:
125/250;125 V
Wattage:
5,000
Weight:
.300 L
Wire Size:
#18 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
