HBL HBL9360 by Hubbell Wiring Device-Kellems
- Part Number: HBL9360
- UPC: 00783585015262
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

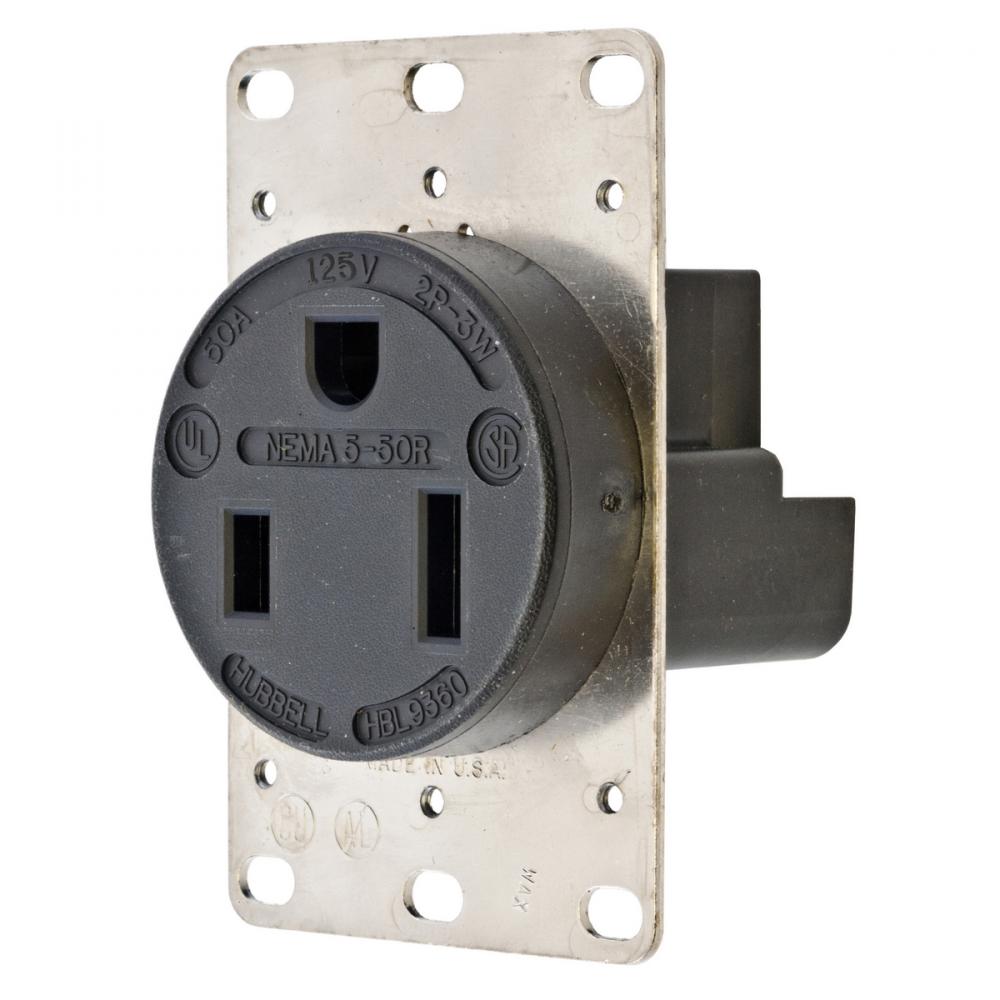

HWDK HBL9360 RCPT, 2P3W, 50A 125V,
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
50
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-50R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Phase:
Single Phase
Size:
3.28 in x 2.25 in x 2.23 in
Spec Sheet:
Special Features:
Standard
Standard:
CSA Certified;NEMA® WD-6 Compliant;UL Listed File E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
6,250
Weight:
.154 L
Wire Size:
#12 AWG to #4 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
