HBL HBL9319 by Hubbell Wiring Device-Kellems
- Part Number: HBL9319
- UPC: 00783585015521
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

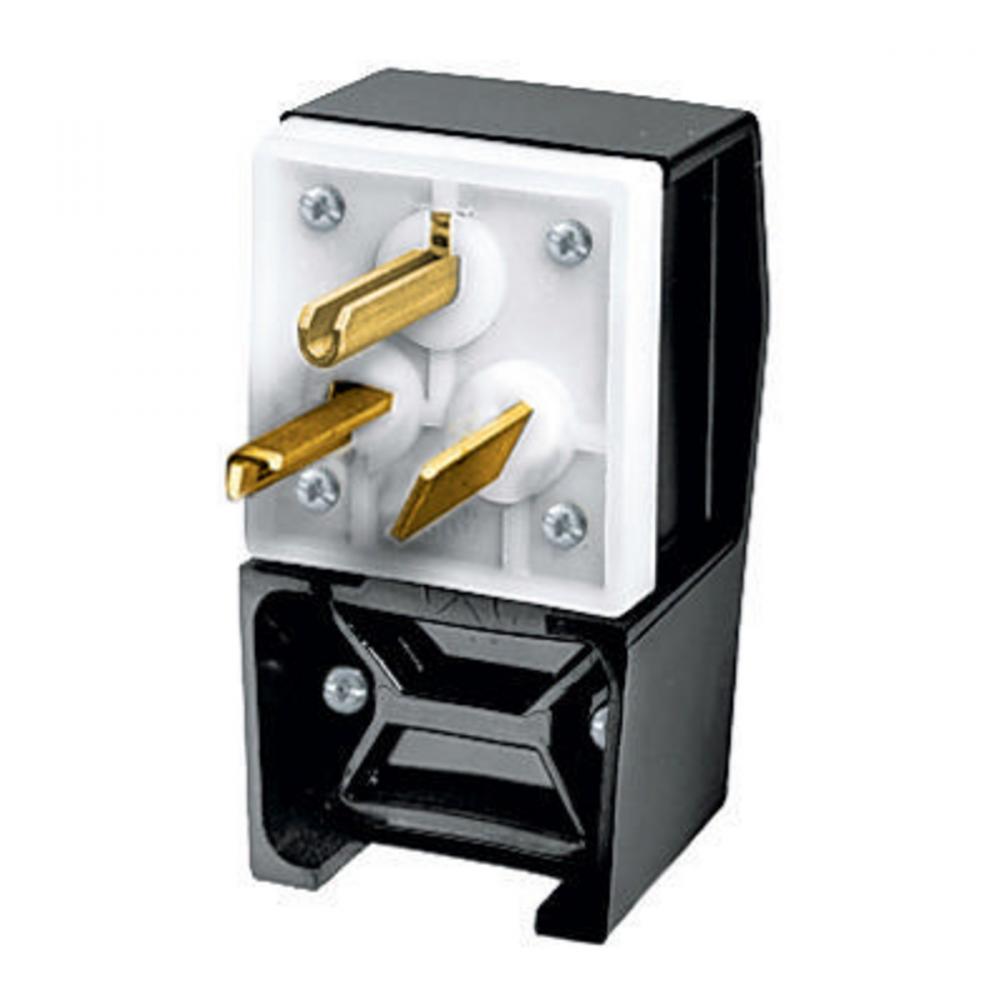

HWDK HBL9319 PLUG, ANG, 2P3W, 30A 2
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
30
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Terminal Screws
Cord Type:
All Portable
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Cord Mounted
NEMA Rating:
7-30P
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single
Size:
4.34 in x 2.75 in x 1.88 in
Spec Sheet:
Special Features:
Angled, 4-Position
Standard:
UL Listed To UL498 File E1706, CSA Certified To C22.2 No. 42 File 280
Sub Brand:
Straight Blade Devices
Type:
Plug
UNSPSC:
39121402
Voltage Rating:
277
Warranty Link:
Wattage:
8,310
Weight:
.550 L
Wire Size:
#12 AWG to #4 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
