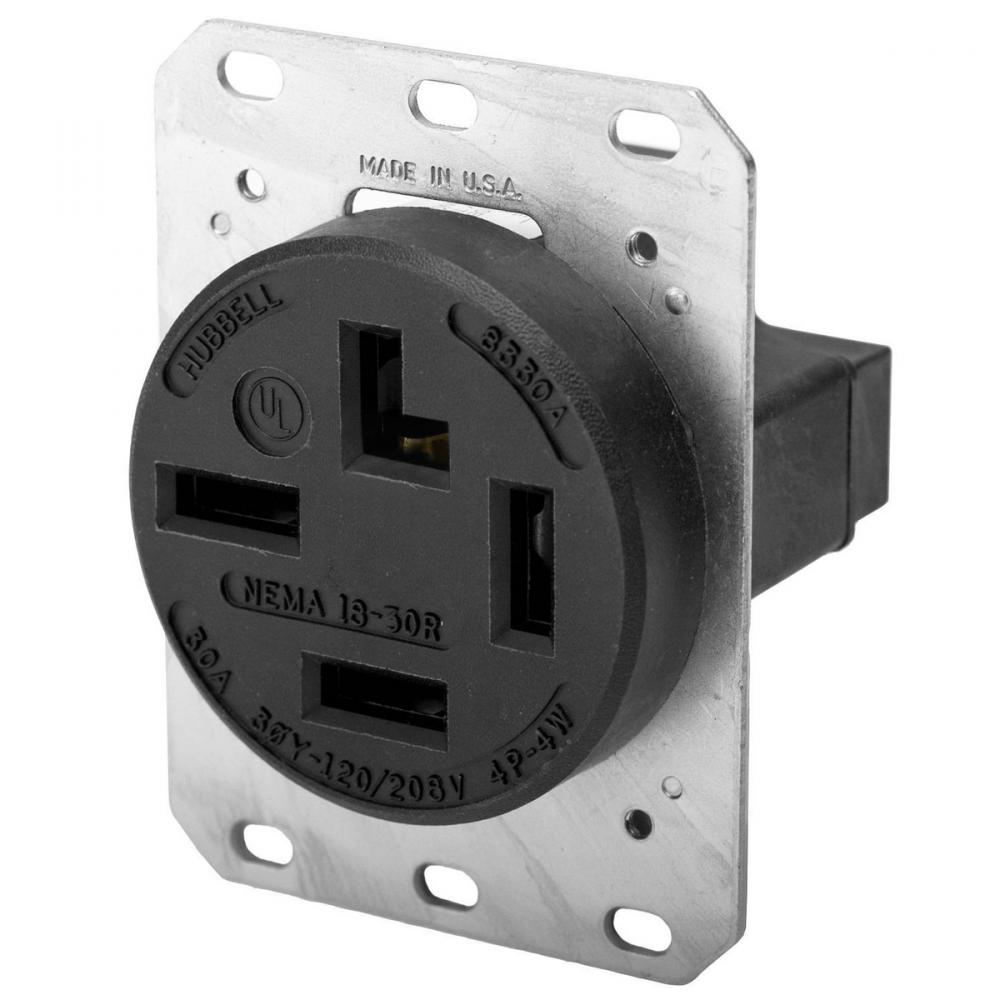

HBL HBL8330A by Hubbell Wiring Device-Kellems
- Part Number: HBL8330A
- UPC: 00783585015453
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL8330A RCPT, 4P4W, 30A 120/2
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
18-30R
Number Of Poles:
4-Pole
Number Of Wires:
4-Wire Non-Grounding
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA;NEMA® WD-6 Compliant;UL Listed File E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
120/208
Warranty Link:
Wattage:
6,240
Weight:
.600 L
Wire Size:
#12 AWG to #6 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
