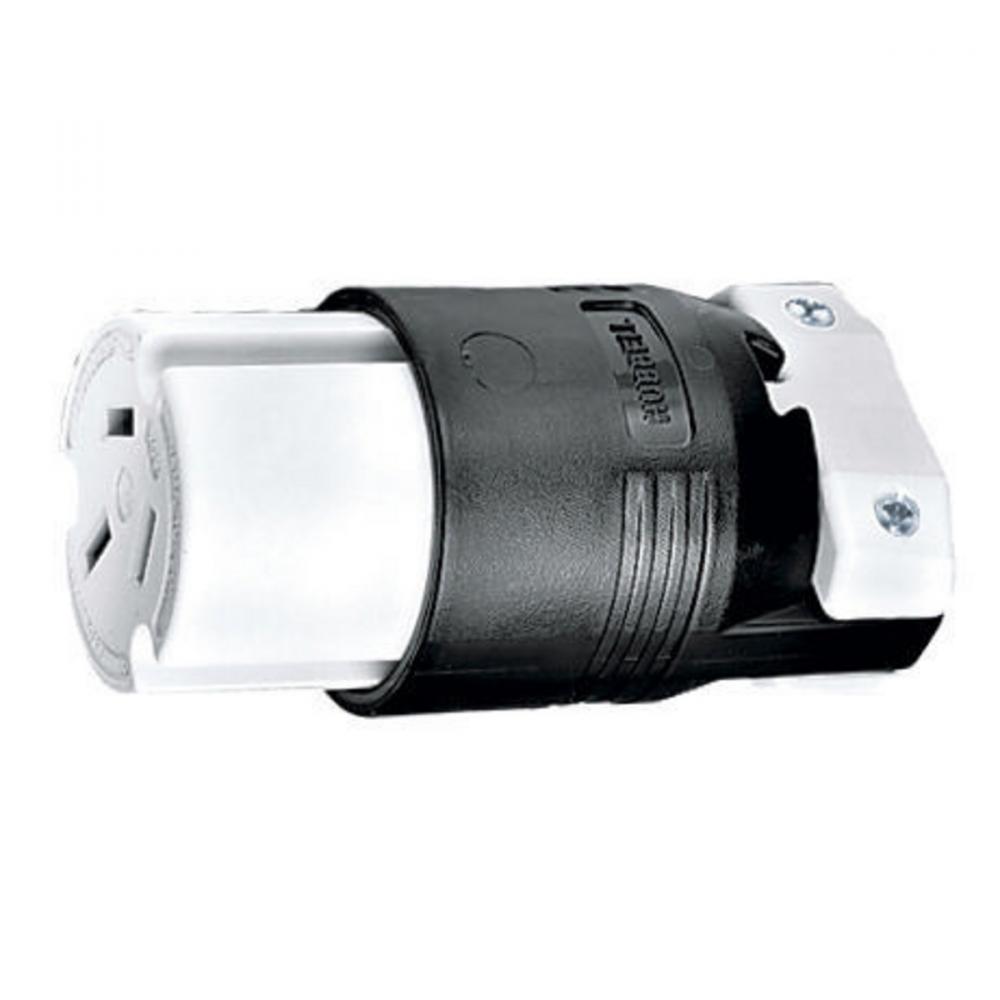

HBL HBL7515C by Hubbell Wiring Device-Kellems
- Part Number: HBL7515C
- UPC: 00783585015118
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL7515C CONN, 3P3W, 50A 125/2
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
50
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#10 AWG
Connection:
Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
10-50R
Number Of Conductors:
3-Wire Non-Grounding
Number Of Poles:
3-Pole
Size:
5.75 in x 2.88 in x 2.88 in
Spec Sheet:
Special Features:
Standard Product
Standard:
CSA Certified;UL Listed File E1706
Sub Brand:
Straight Blade
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125/250
Warranty Link:
Weight:
.466 L
Manufactured By:
Hubbell Wiring Device-Kellems
