HBL HBL5965VBLK by Hubbell Wiring Device-Kellems
- Part Number: HBL5965VBLK
- UPC: 00783585013084
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

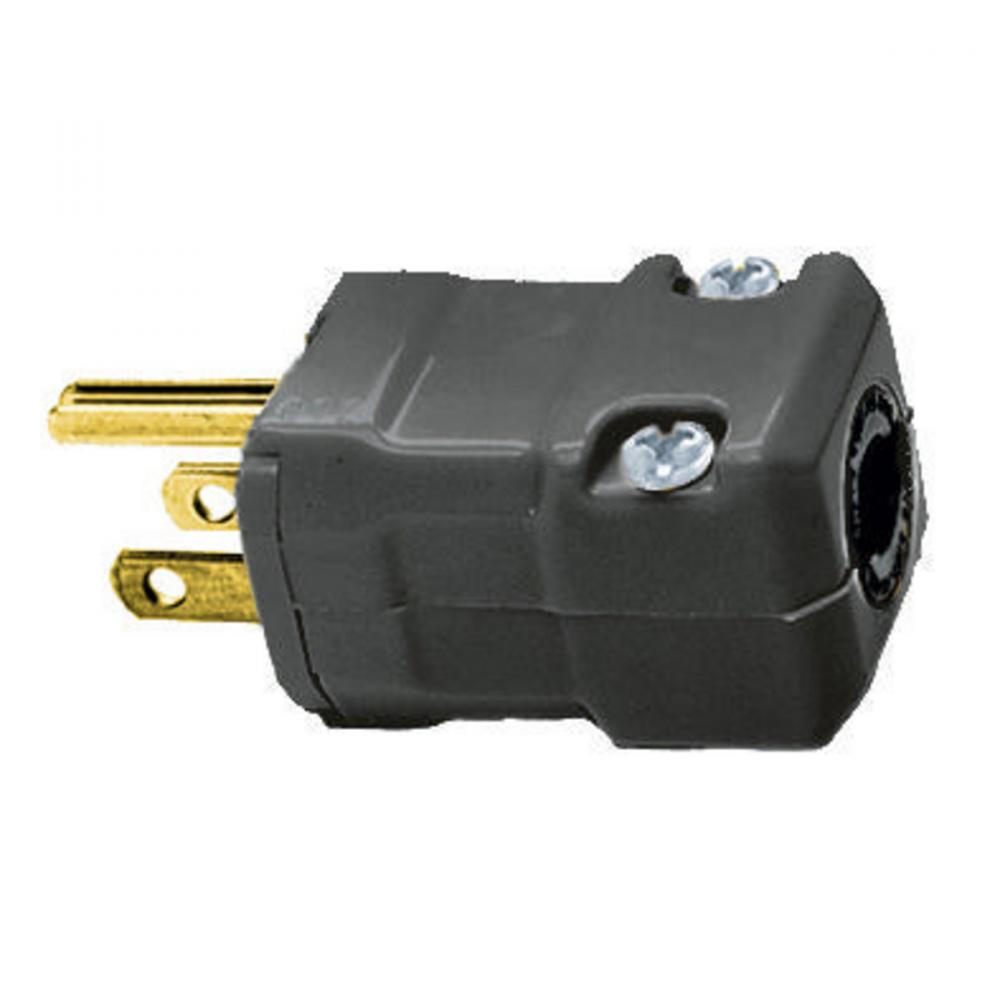

HWDK HBL5965VBLK VALISE PLUG, 15A 125V 5-15P BK
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
15
Application:
Industrial/Commercial Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Terminal Screws
Cord Type:
All Portable
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Polycarbonate
Mounting:
Cord Mounted
NEMA Rating:
5-15P
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
1.87 in x 1.12 in x 1.87 in
Spec Sheet:
Special Features:
Standard Product
Standard:
CSA Certified to C22.2 No 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Sub Brand:
Straight Blade Devices
Type:
Plug
UNSPSC:
39121402
Voltage Rating:
125
Warranty Link:
Wattage:
1875
Weight:
.042 L
Wire Size:
#18 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
