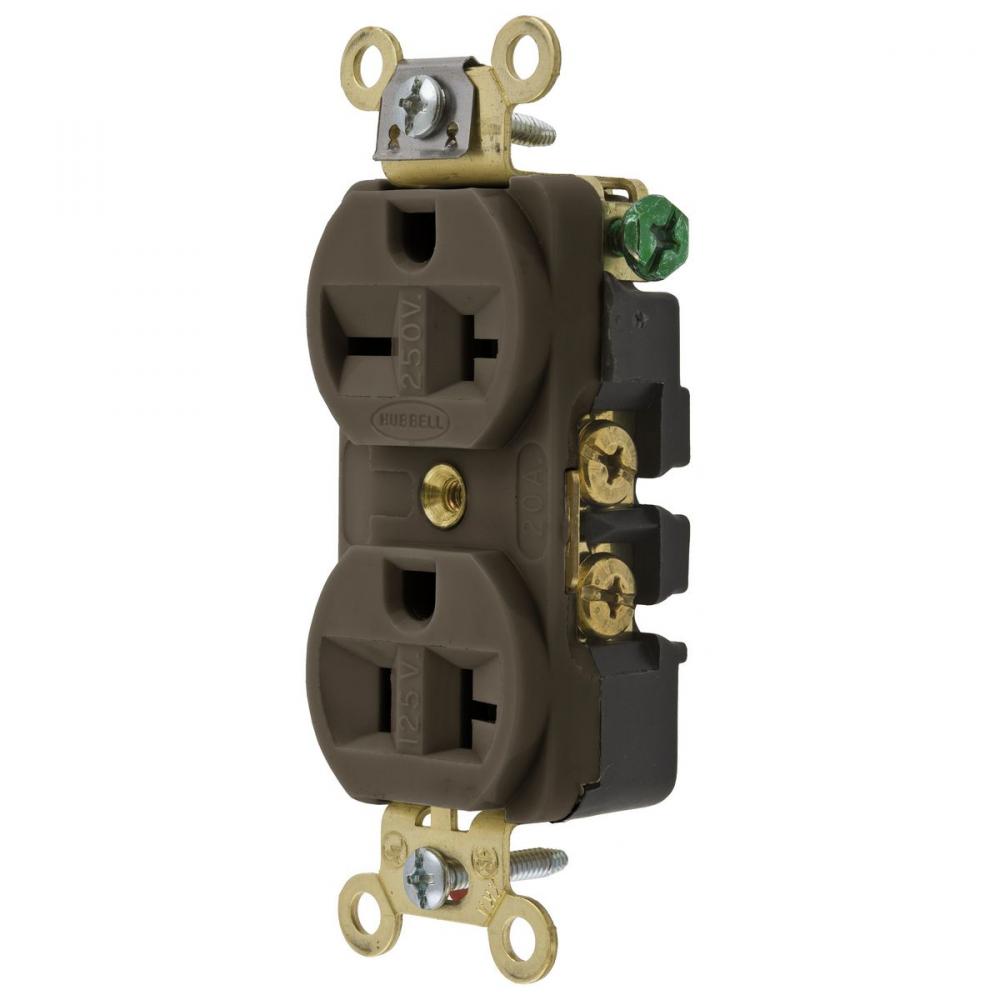

HBL HBL5492 by Hubbell Wiring Device-Kellems
- Part Number: HBL5492
- UPC: 00783585435442
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL5492 DUP RCPT, 20A COMBO, 5
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Brown
Connection:
Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-20R, 6-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
3.28 in x 1.5 in x 0.88 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186
Sub Brand:
Straight Blade Devices
Type:
Combination Receptacle
UNSPSC:
39121406
Voltage Rating:
125/250
Warranty Link:
Wattage:
5,000
Weight:
.250 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
