HBL HBL53CM62 by Hubbell Wiring Device-Kellems
- Part Number: HBL53CM62
- UPC: 00783585411064
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

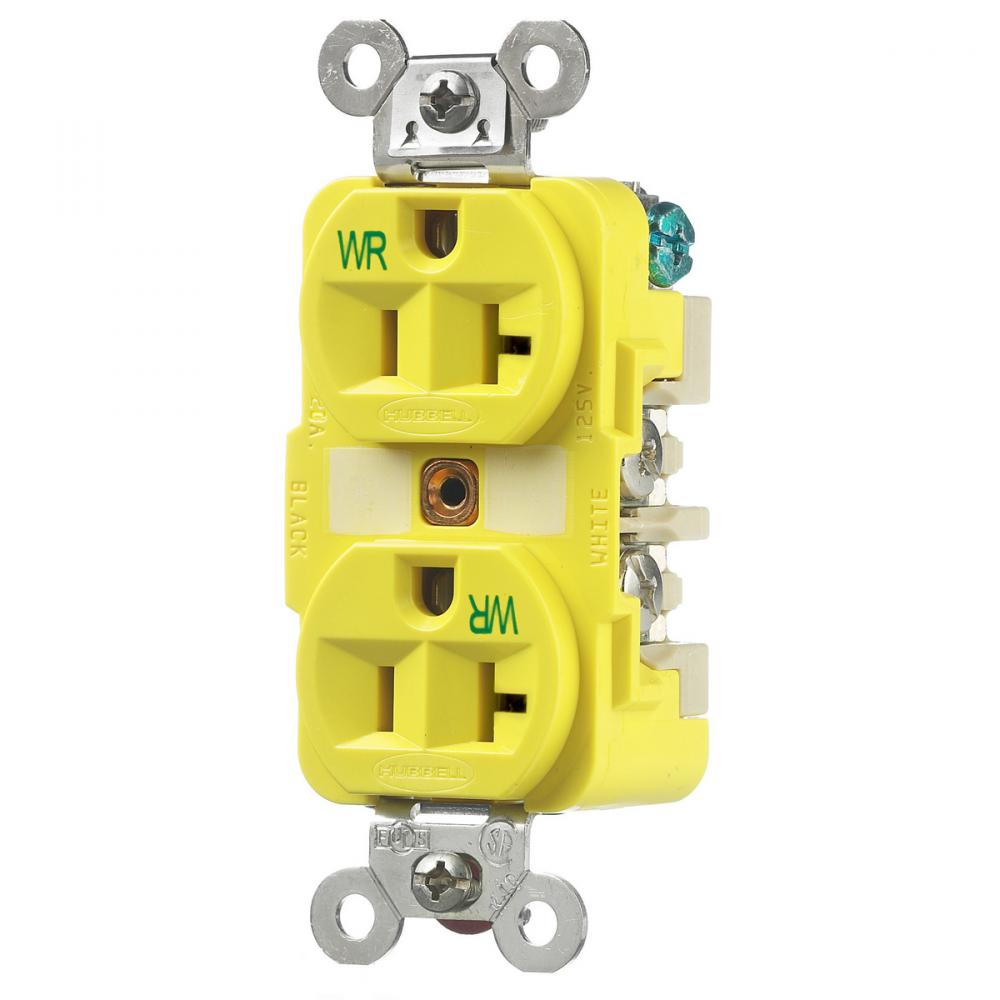

HWDK HBL53CM62 DUP MARINE RCPT, 20A
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Marine Wiring Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Corrosion resistant
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
3.28 in x 1.65 in x 1.19 in
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Type:
Duplex Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.671 L
Wire Size:
#12 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
