HBL HBL5378C by Hubbell Wiring Device-Kellems
- Part Number: HBL5378C
- UPC: 00783585174402
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

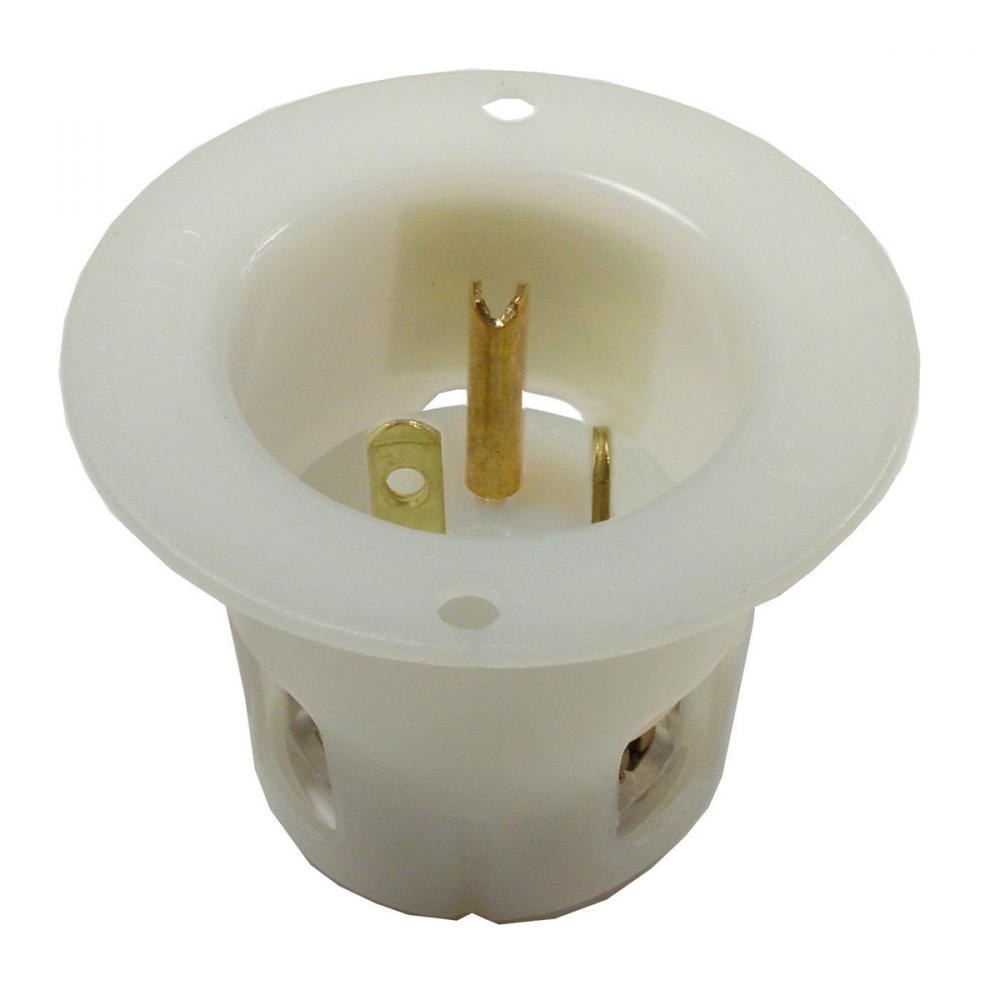

HWDK HBL5378C FLG-INLET, 20A 125V,
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
5-20P
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
1.71 in x 1.69 in x 1.71 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
Sub Brand:
Straight Blade Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Flanged Inlet
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.085 L
Wire Size:
#18 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
