HBL HBL5369C by Hubbell Wiring Device-Kellems
- Part Number: HBL5369C
- UPC: 00783585174259
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

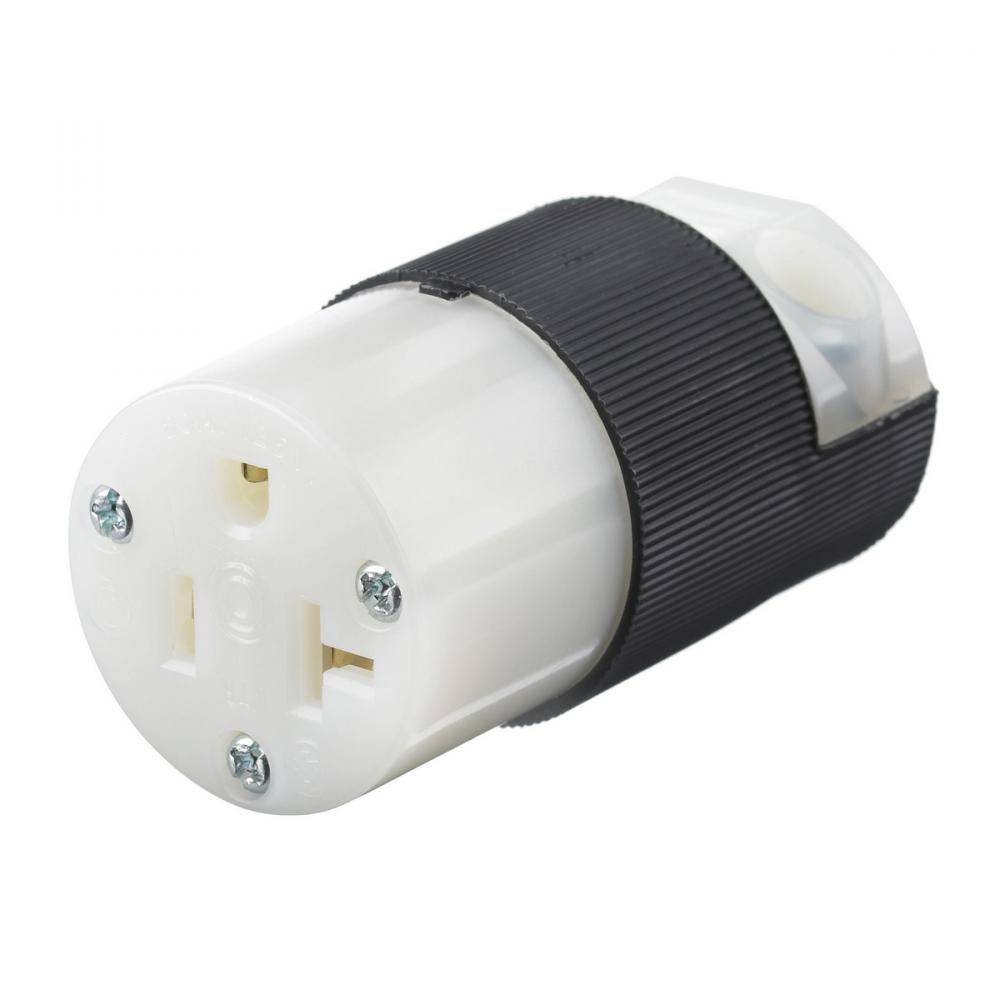

HWDK HBL5369C CONN, 20A 125V, 5-20R
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Industrial/Commercial Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, White
Conductor Range:
#18 AWG to #10 AWG
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Polycarbonate
Mounting:
Cord Mounted
NEMA Rating:
5-20R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Size:
2.78 in x 1.41 in x 1.53 in
Spec Sheet:
Special Features:
Standard Product
Standard:
CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Sub Brand:
Straight Blade
Tech Drawing Link:
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.200 L
Manufactured By:
Hubbell Wiring Device-Kellems
