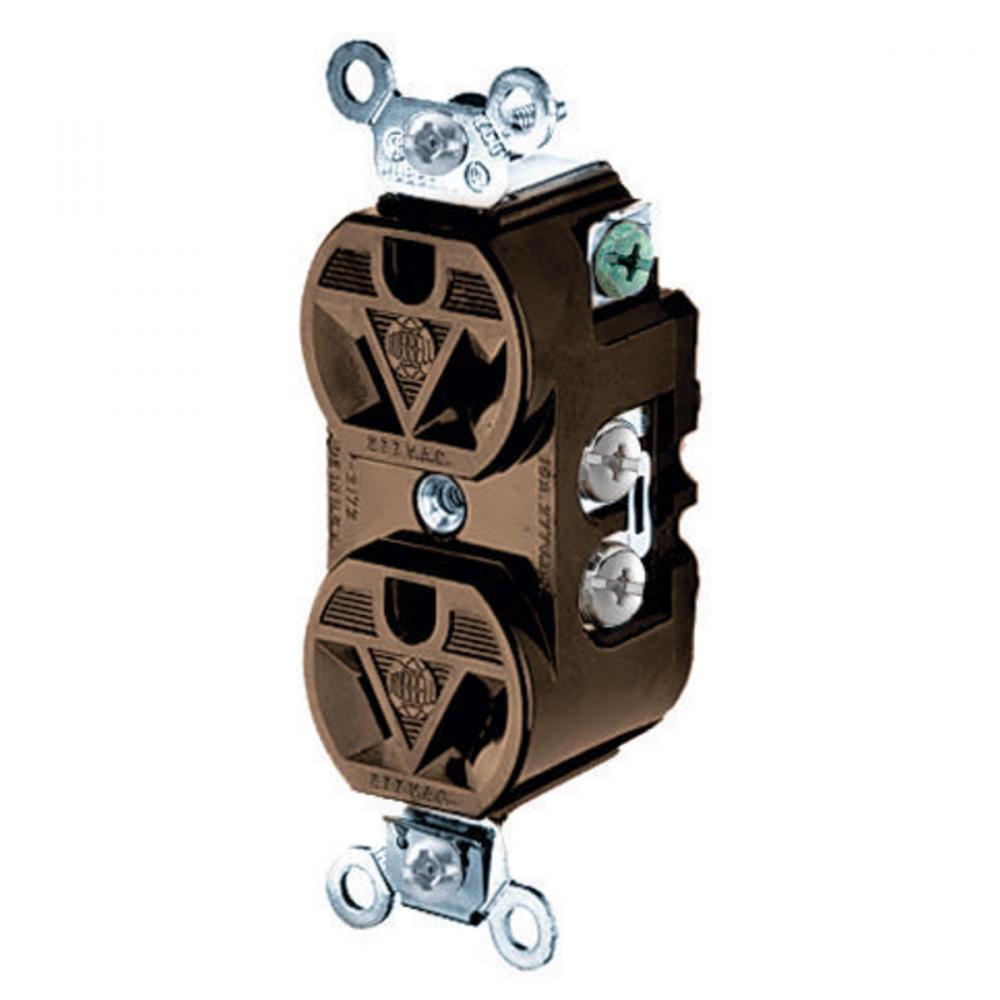

HBL HBL5302 by Hubbell Wiring Device-Kellems
- Part Number: HBL5302
- UPC: 00783585014241
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL5302 DUP RCPT, 15A 277V, 7-
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Brown
Connection:
Back and Side Wired
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
7-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
3.28 in x 1.33 in x 1.19 in
Spec Sheet:
Special Features:
Standard
Standard:
CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Sub Brand:
Straight Blade Devices
Type:
Standard Duplex
UNSPSC:
39121406
Voltage Rating:
277
Warranty Link:
Wattage:
4,155
Weight:
.250 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
