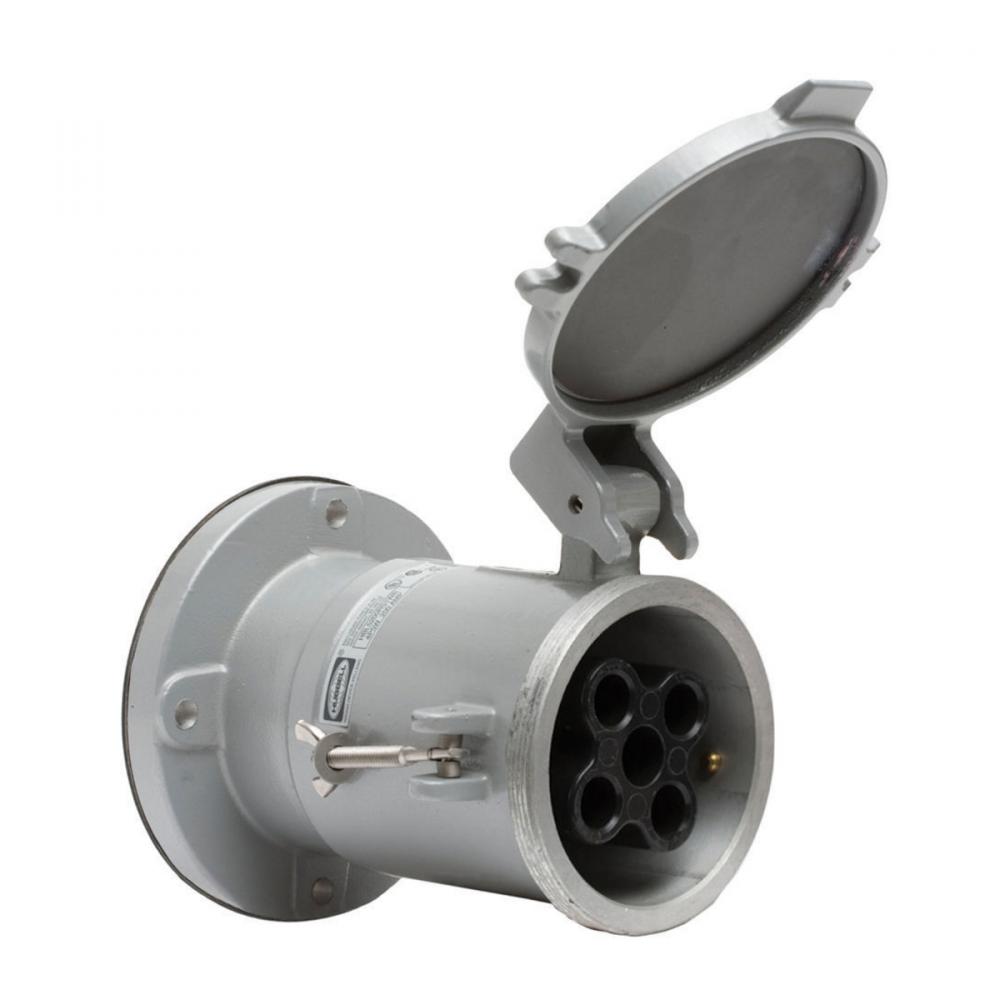

HBL HBL5200RS1W by Hubbell Wiring Device-Kellems
- Part Number: HBL5200RS1W
- UPC: 00783585011561
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL5200RS1W P+S RCPT,INSUL,4P5
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
200
Application:
Metallic with Nylon Shroud
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black and Gray
Connection:
Pressure Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Sub Brand:
Pin and Sleeve Devices
Type:
Watertight Receptacle
UNSPSC:
39121406
Voltage Rating:
600 VAC/250
Warranty Link:
Wattage:
120,000
Weight:
10.650 L
Wire Size:
#2 AWG to #4/0 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
