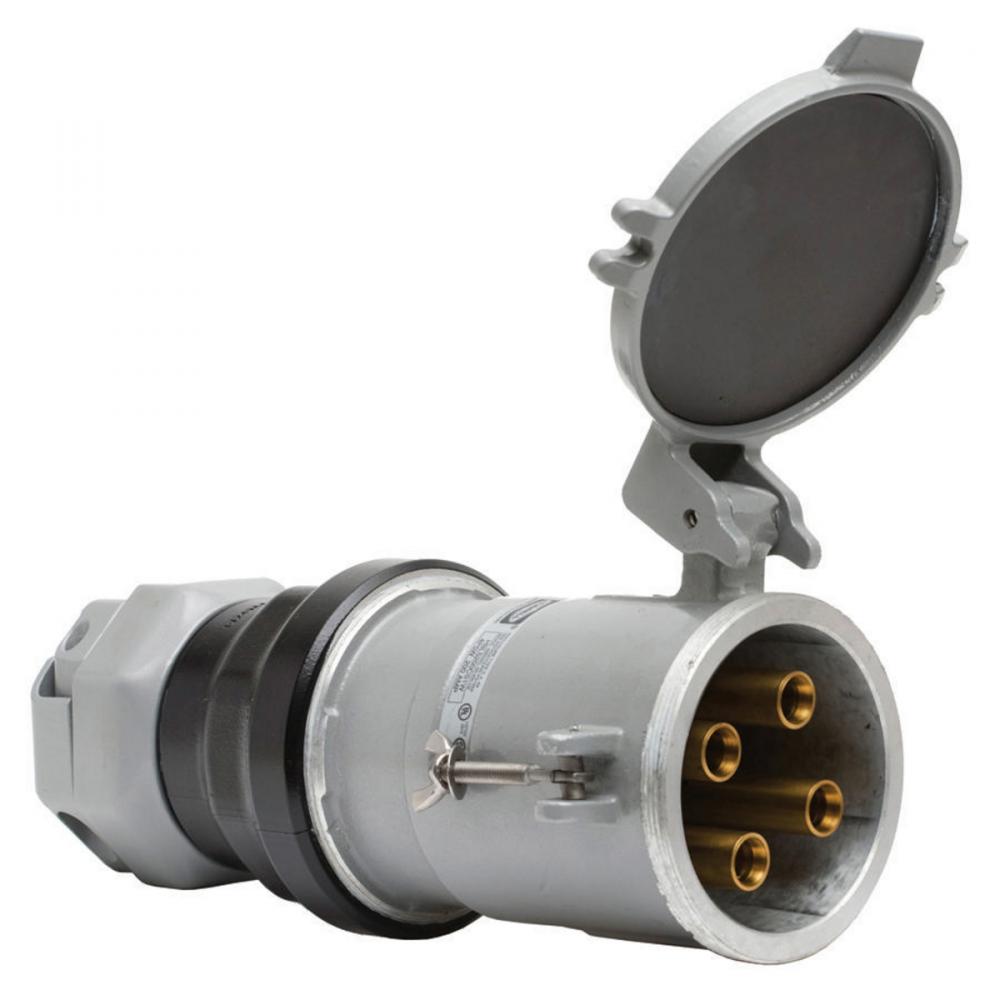

HBL HBL5200CS1WR by Hubbell Wiring Device-Kellems
- Part Number: HBL5200CS1WR
- UPC: 00783585012490
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL5200CS1WR P+S CONN,INSUL,4P
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
200
Application:
Metallic with Nylon Shroud
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black and Gray
Conductor Range:
#1 AWG to #250 MCM
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
5-Wire Grounding Style 1
Number Of Poles:
4-Pole
Size:
Standard
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Sub Brand:
Pin and Sleeve Devices
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Watertight Connector
UNSPSC:
39121421
Voltage Rating:
600 VAC/250
Warranty Link:
Weight:
13.600 L
Manufactured By:
Hubbell Wiring Device-Kellems
