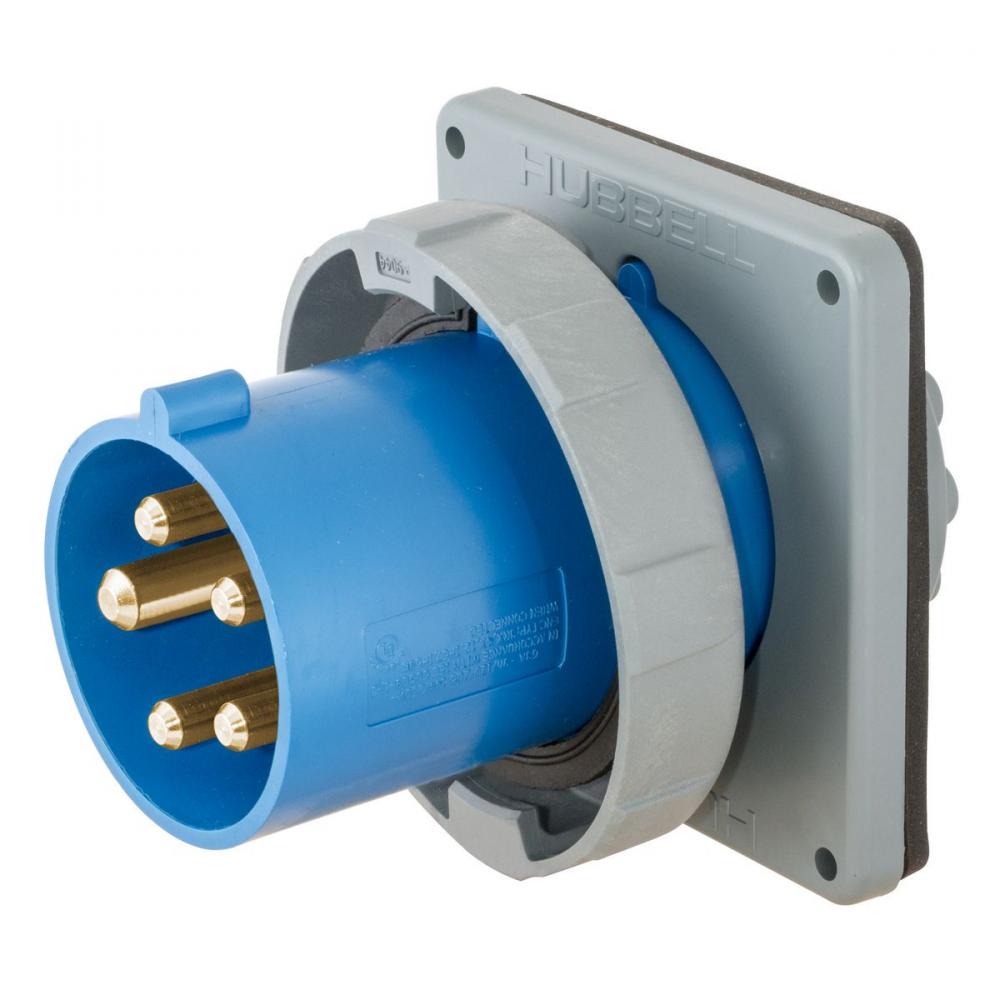

HBL HBL5100B9W by Hubbell Wiring Device-Kellems
- Part Number: HBL5100B9W
- UPC: 00783585405032
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Product Overview
HWDK HBL5100B9W P+S INLET,IEC,4P5W,
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
100
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Blue
Connection:
Pressure Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 3000V Minimum in
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Sub Brand:
Pin and Sleeve Devices
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Type:
Watertight Inlet
UNSPSC:
39121406
Voltage Rating:
3 Phase Y 120/208
Warranty Link:
Wattage:
20,800
Weight:
3.500 L
Wire Size:
#3 AWG to #1/0 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
