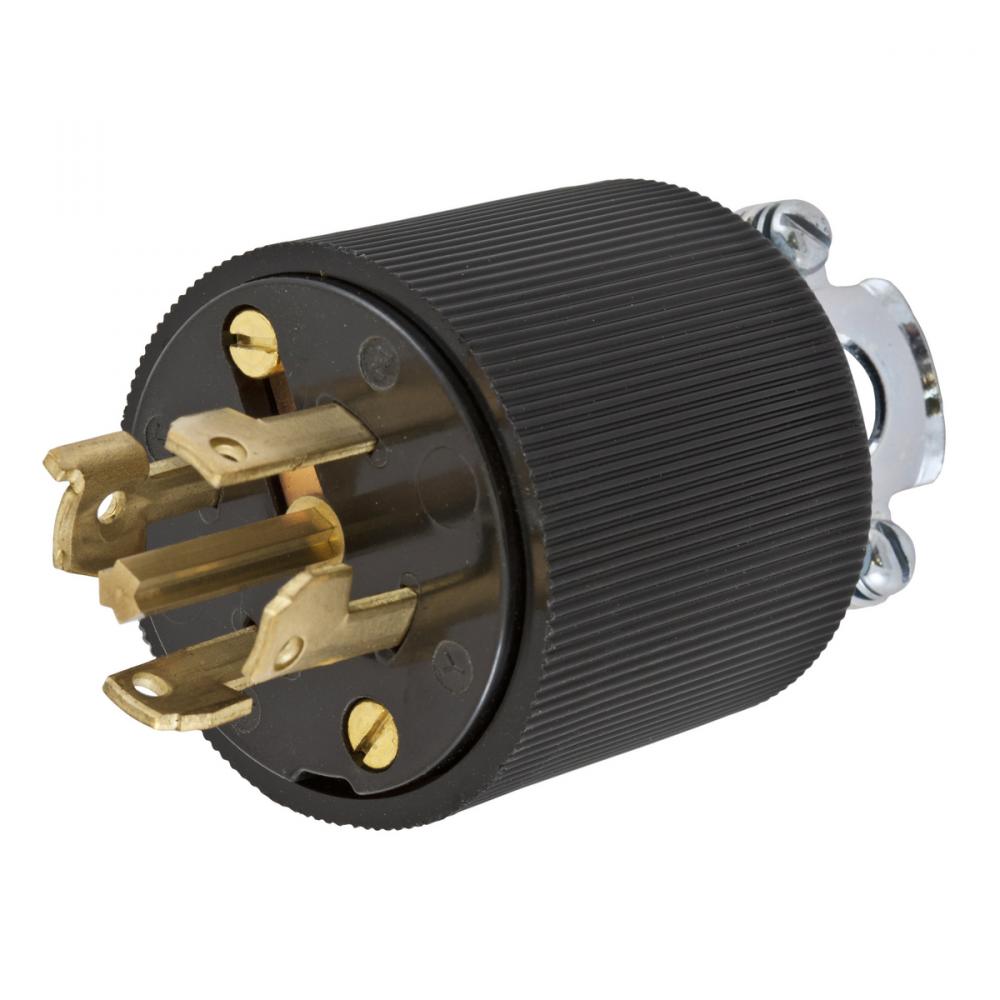

HBL HBL45315 by Hubbell Wiring Device-Kellems
- Part Number: HBL45315
- UPC: 00783585236575
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL45315 LKG PLUG, VARILOAD, 4
Specifications
Details
Electrical Category:
Fittings and Hardware
Lugs Plugs And Connectors
Electrical Subcategory:
Locking Hardware
Locking Equipment
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminal
Cord Type:
All Listed Portables
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire Grounding
Phase:
Multi Phase
Size:
2.77 in x 2.13 in x 2.13 in
Spec Sheet:
Special Features:
Unique Center Pin
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
Variload Twist-Lock
Type:
Standard
UNSPSC:
39121403
Voltage Rating:
250 VDC/600
Warranty Link:
Wattage:
18,000
Weight:
.400 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
