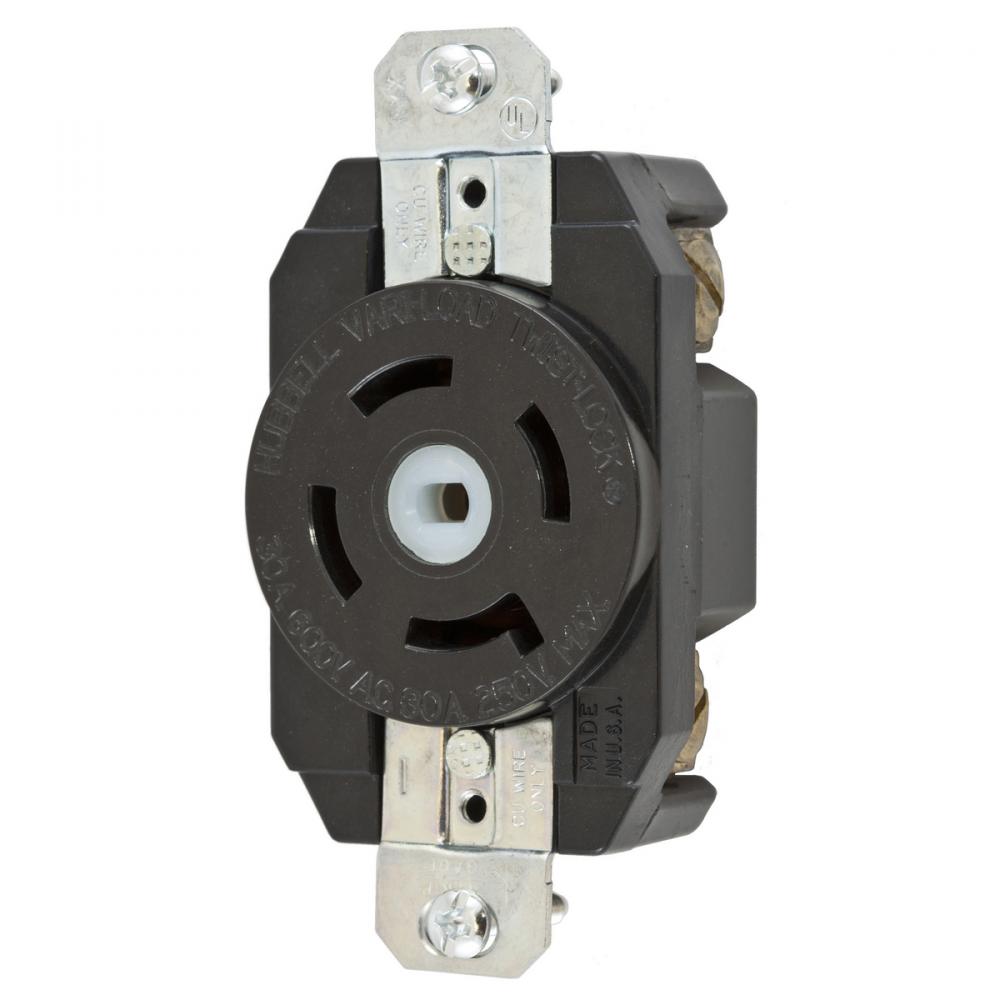

HBL HBL45105 by Hubbell Wiring Device-Kellems
- Part Number: HBL45105
- UPC: 00783585236506
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL45105 LKG RCPT, VARILOAD, 4
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminal
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Phase:
Multi Phase
Size:
3.28 in x 1.72 in x 1.27 in
Spec Sheet:
Special Features:
Unique Center Pin
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
250 VDC/600
Warranty Link:
Wattage:
18,000
Weight:
.350 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
