HBL HBL420HI by Hubbell Wiring Device-Kellems
- Part Number: HBL420HI
- UPC: 00783585015774
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

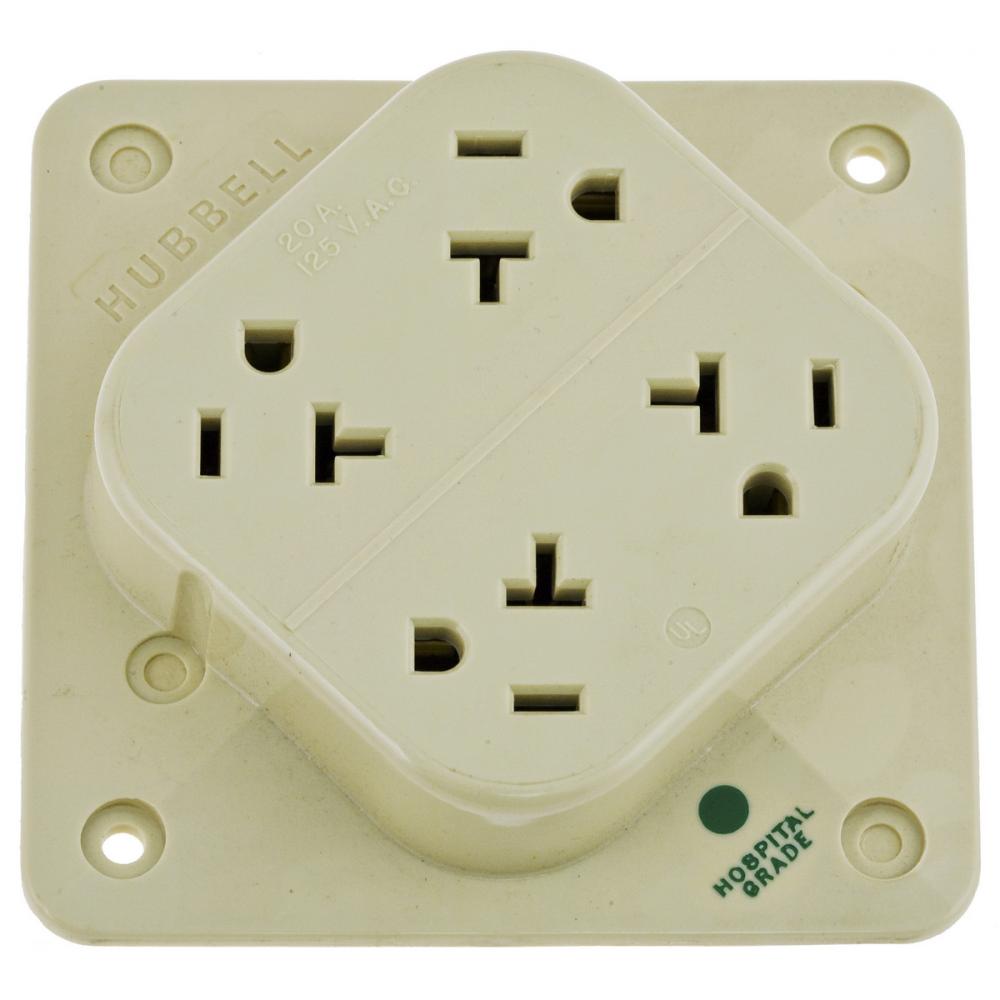

HWDK HBL420HI 4-PLEX HG RCPT, 20A 1
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
4-Plex Hospital Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Ivory
Connection:
Back Wired Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Polycarbonate
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
4.3 in x 4.3 in x 0.92 in
Spec Sheet:
Special Features:
High impact resistant Polycarbonate construction
Standard:
Certified to CSA, C22.2, No. 42 File 285;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
4-PLEX Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.179 L
Wire Size:
#12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
