HBL HBL415I by Hubbell Wiring Device-Kellems
- Part Number: HBL415I
- UPC: 00783585013770
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

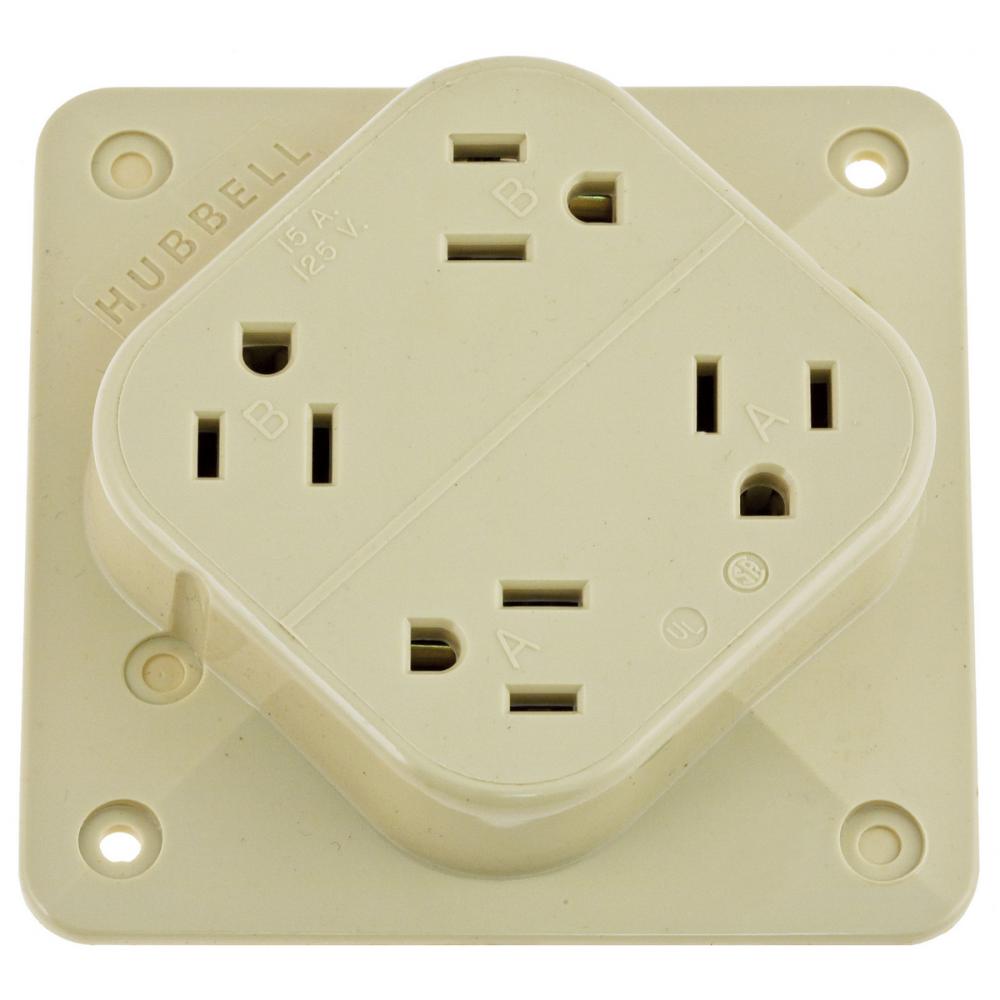

HWDK HBL415I 4-PLEX RCPT, 15A 125V,
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Ivory
Connection:
Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Polycarbonate
Mounting:
Screw Mount
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
4.30 in x 0.92 in x 4.30 in
Spec Sheet:
Special Features:
Triple wipe contacts
Standard:
Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA® WD-6 Compliant
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
4-PLEX
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.450 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
