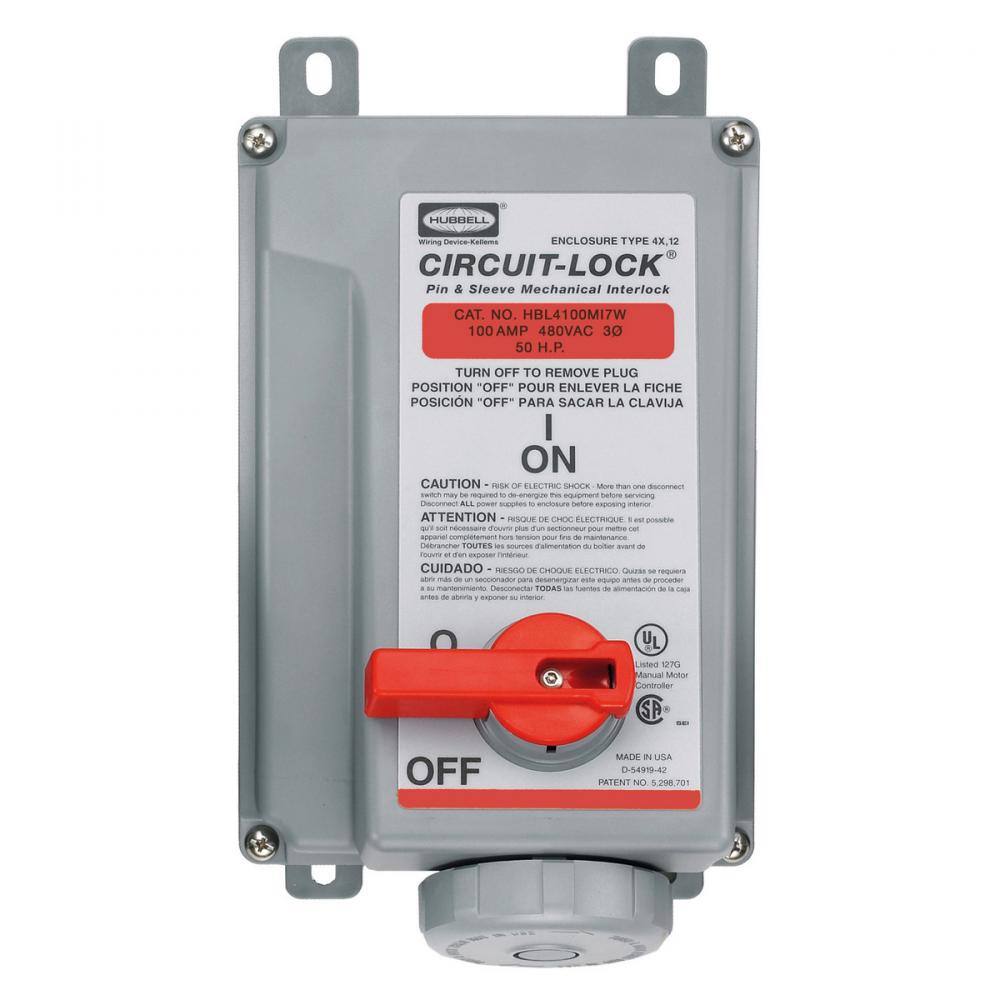

HBL HBL4100MI7W by Hubbell Wiring Device-Kellems
- Part Number: HBL4100MI7W
- UPC: 00783585405889
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL4100MI7W P+S MECH-INT,IEC,3
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
100
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Connection:
Pressure Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
UL Listed
Sub Brand:
IEC 309 Pin and Sleeve Devices
Tech Drawing Link:
Type:
Mechanical Interlock
UNSPSC:
39121406
Voltage Rating:
3 Phase 480
Warranty Link:
Wattage:
48,000
Weight:
10.200 L
Wire Size:
#3 AWG to #1/0 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
