HBL HBL3032I by Hubbell Wiring Device-Kellems
- Part Number: HBL3032I
- UPC: 00783585434582
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

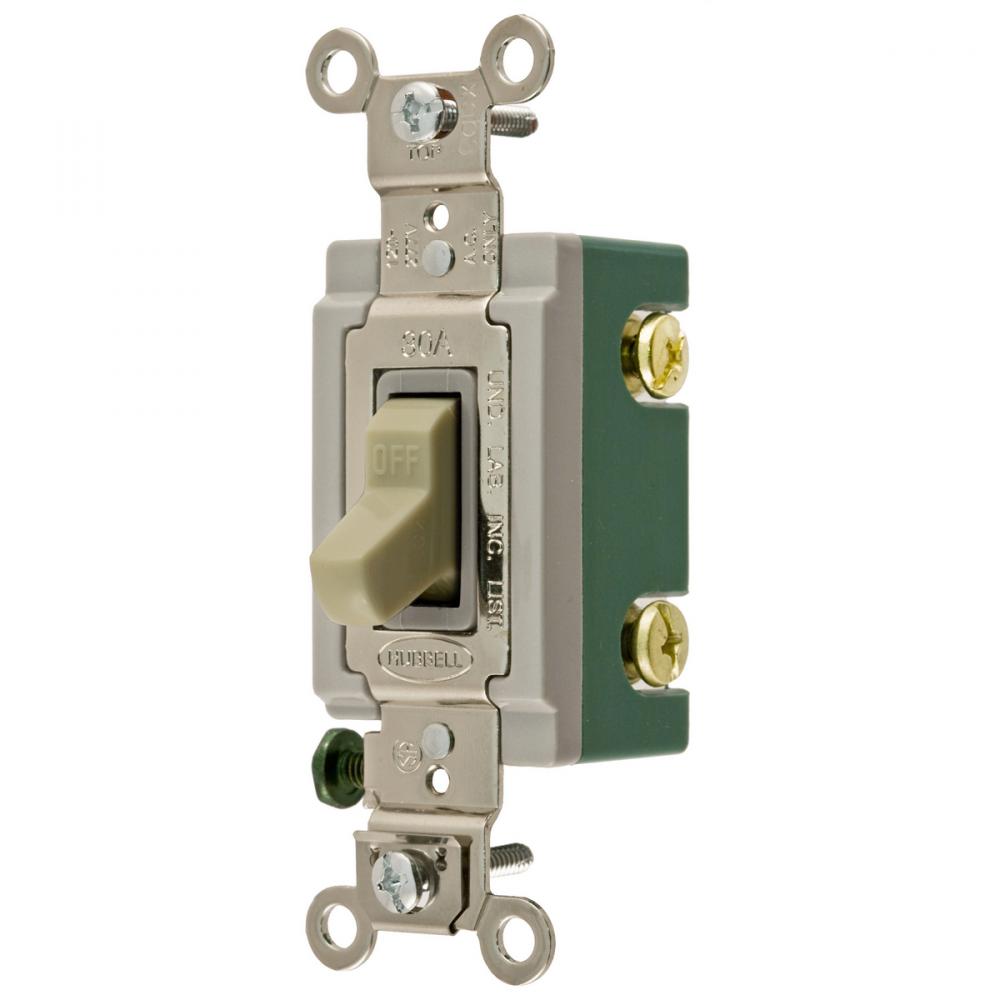

HWDK HBL3032I DP TOG, IND GRD, 30A
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Positive Snap
Actuator:
Toggle
Amperage Rating:
30
Application:
Back and Side Wired
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Ivory
Connection:
Back and Side Wired
Contact Configuration:
Two Position
Contact Rating:
Per UL 20
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
None
Line Drawing Link:
Mounting:
Screw Mount
Number Of Poles:
Double Pole
Operating Cycles:
50,000 Cycles
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Size:
4.06 in x 1.31 in x 1.87 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
AC Toggle Switches
Tech Drawing Link:
Type:
Toggle
UNSPSC:
39122211
Voltage Rating:
120-277
Warranty Link:
Wattage:
8310
Weight:
.077 L
Manufactured By:
Hubbell Wiring Device-Kellems
