HBL HBL2741 by Hubbell Wiring Device-Kellems
- Part Number: HBL2741
- UPC: 00783585039374
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

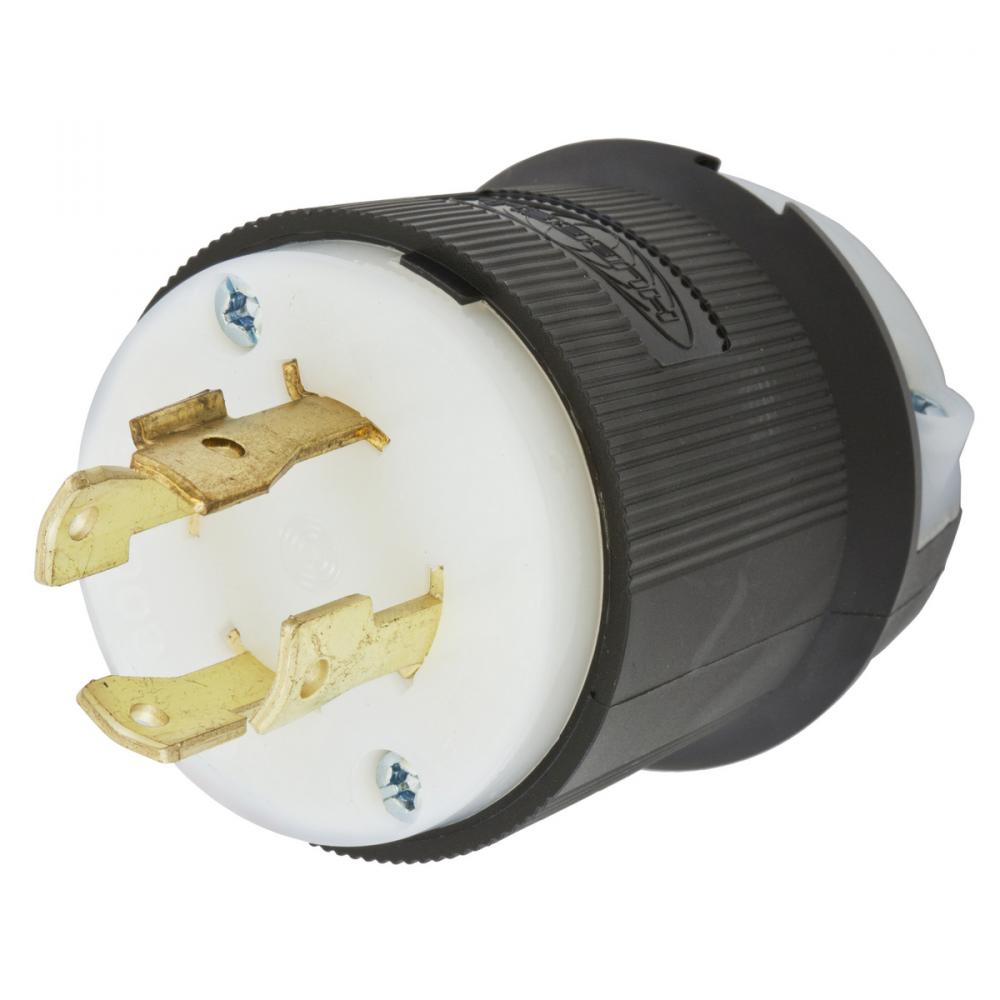

HWDK HBL2741 LKG PLUG, 30A 3P 600V,
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
30
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, White
Connection:
Terminal Screws
Cord Type:
All Listed Portables
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L17-30P
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Phase:
Three Phase
Size:
2.33 in x 2.33 in x 2.75 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Plugs
UNSPSC:
39121402
Voltage Rating:
3 Phase 600
Warranty Link:
Wattage:
18,000
Weight:
.162 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
