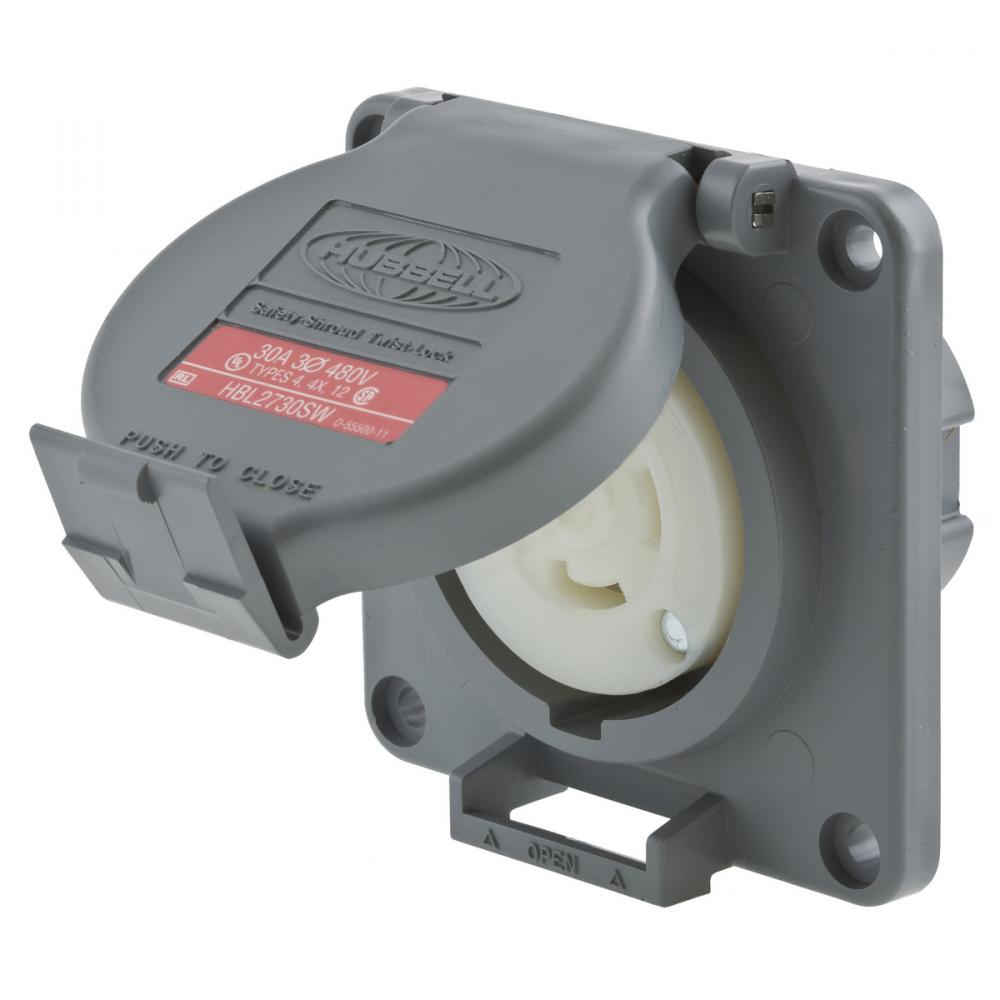

HBL HBL2730SW by Hubbell Wiring Device-Kellems
- Part Number: HBL2730SW
- UPC: 00783585231907
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL2730SW LKG WT S/SHRD RCPT,
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty Industrial Shrouded Watertight
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray and White
Connection:
Screw Terminal
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
L16-30R
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Phase:
Three Phase
Size:
3.75 in x 3.75 in x 2.9 in
Spec Sheet:
Special Features:
Shrouded Watertight Construction
Standard:
UL Listed, CSA Certified To Type 4, 4X And Type 12
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
480
Warranty Link:
Wattage:
14,400
Weight:
.308 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
