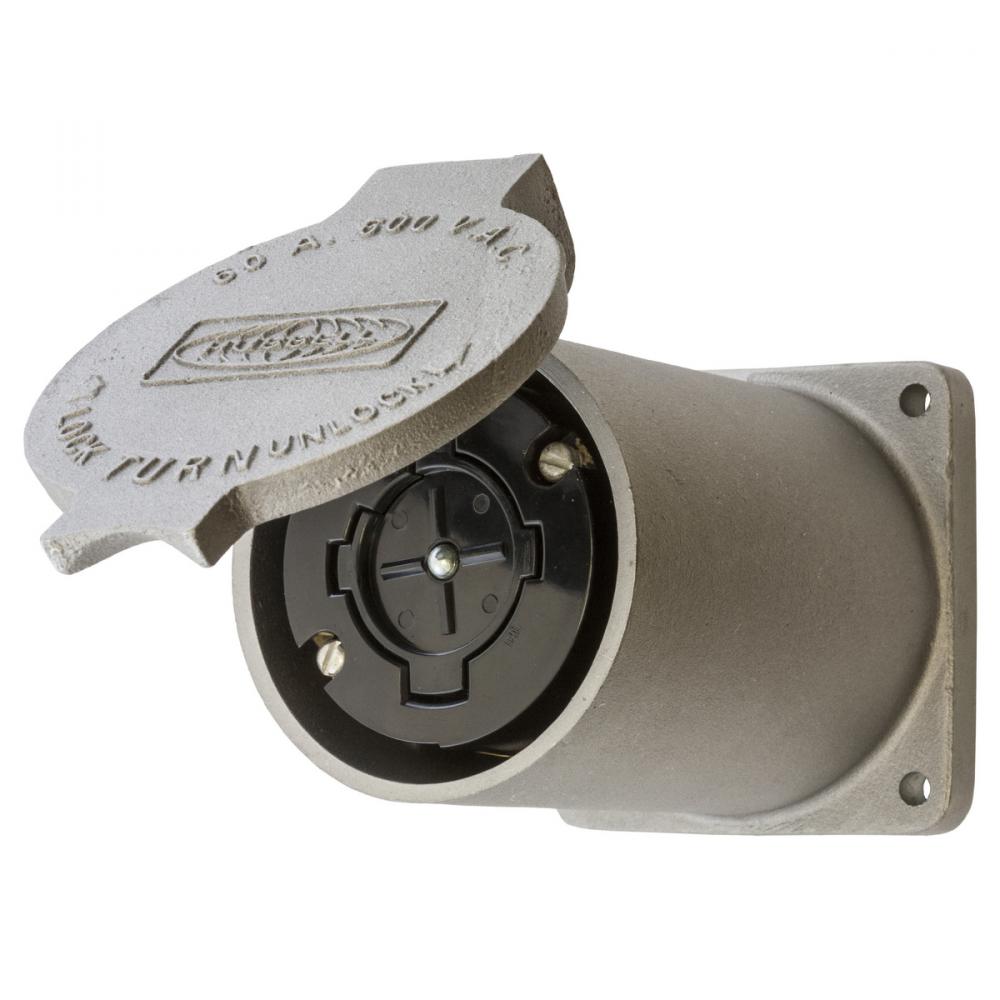

HBL HBL26420 by Hubbell Wiring Device-Kellems
- Part Number: HBL26420
- UPC: 00783585017495
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL26420 H/LOCK RCPT, 3P4W, 60
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
60
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Aluminum
Connection:
Screw Terminal
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Aluminum, Cast
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Phase:
Multi Phase
Size:
3.5 in x 4.32 in x 4.96 in
Spec Sheet:
Special Features:
Auto Ejects Improperly Made Connection
Standard:
Certified to CSA Standard;Listed to UL Standard
Sub Brand:
Hubbellock Devices
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
600
Warranty Link:
Wattage:
36,000
Weight:
2.450 L
Wire Size:
#8 AWG to #4 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
