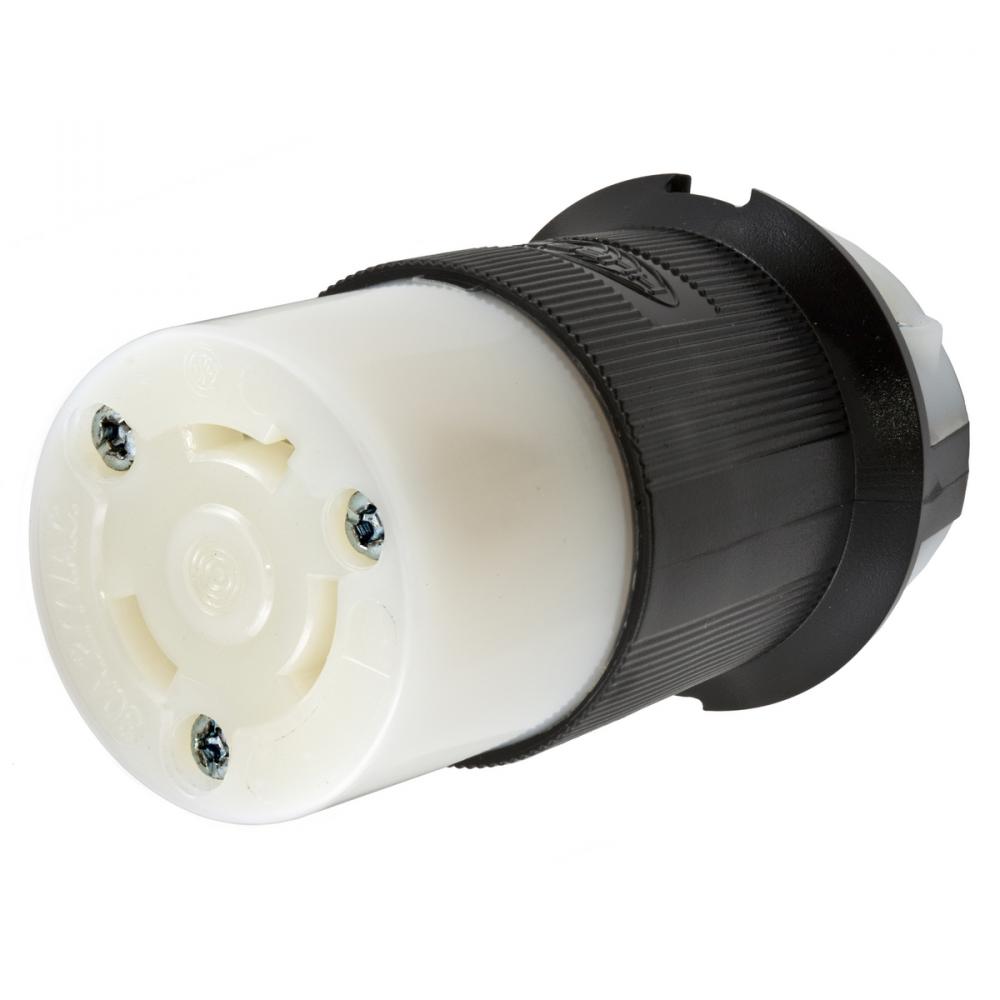

HBL HBL2633 by Hubbell Wiring Device-Kellems
- Part Number: HBL2633
- UPC: 00783585038971
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK HBL2633 LKG CONN, 30A 277V, L7
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
30
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, White
Conductor Range:
#12AWG to #8AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
L7-30R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Size:
2.26 in x 2.26 in x 3.86 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Fed.Spec. W-C-596;Listed to UL 498;Certified to CSA, C22.2, No. 42
Sub Brand:
Twist-Lock
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
277
Warranty Link:
Weight:
.350 L
Manufactured By:
Hubbell Wiring Device-Kellems
