HBL HBL2316 by Hubbell Wiring Device-Kellems
- Part Number: HBL2316
- UPC: 00783585037806
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

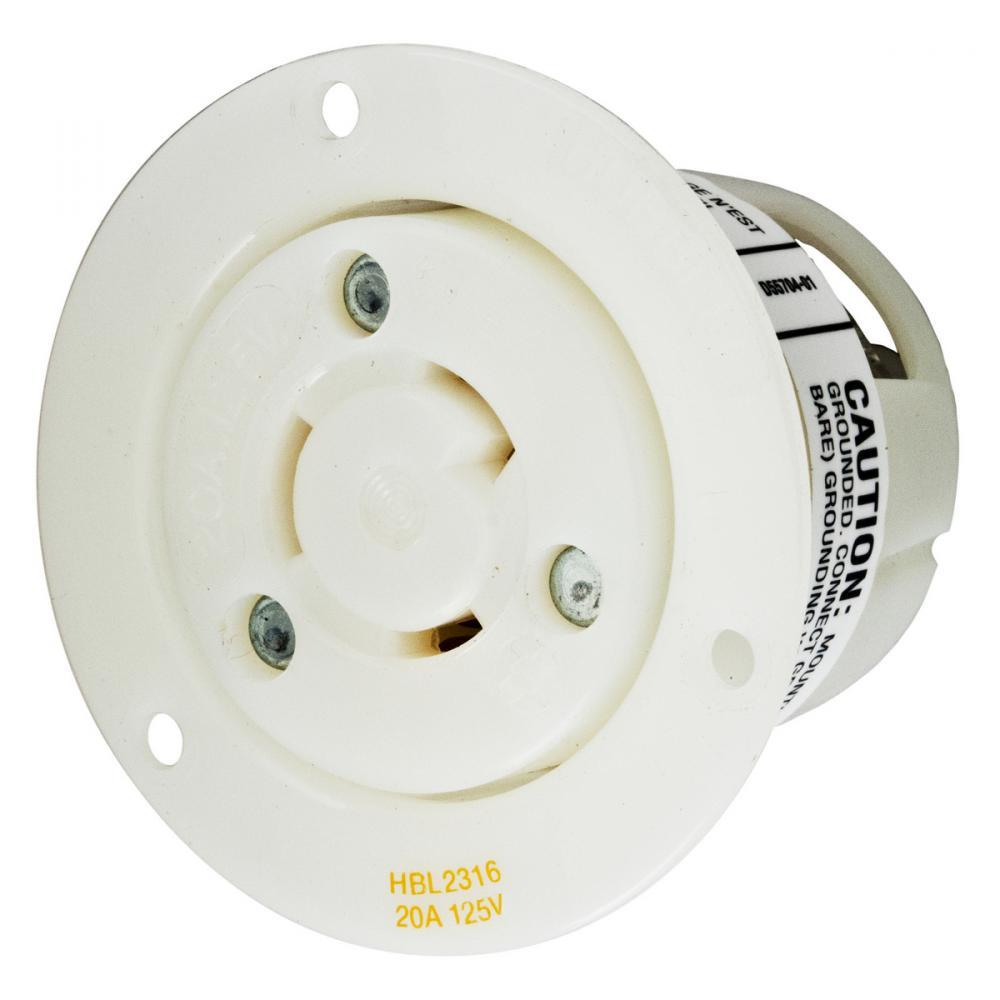

HWDK HBL2316 LKG FLG-RCPT, 20A 125V
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Insulgrip
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Screw Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
2.88 in x 2.88 in x 2.09 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Flanged Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.136 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
