HBL HBL15W47A by Hubbell Wiring Device-Kellems
- Part Number: HBL15W47A
- UPC: 00783585131276
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

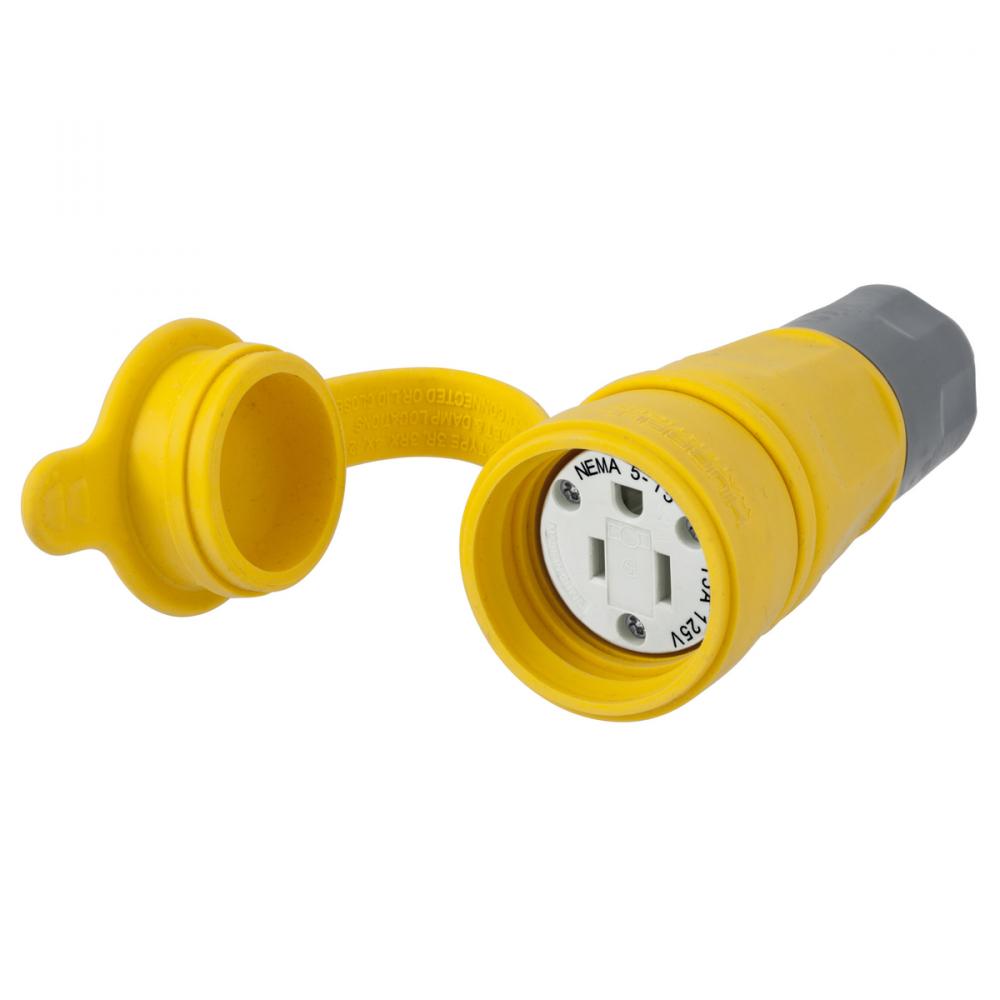

HWDK HBL15W47A 15 AMP INDUSTRIAL GRADE STANDARD WATERTIGHT STRAIGHT BLADE CONNECTOR, 5-15R NEMA CONFIGURATION
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#14AWG to #12AWG
Connection:
Terminal Screws
Country Of Origin:
US
Environmental Conditions:
Water Tight
Insulation:
Insulated Body
Material:
Elastomer/Composite
Mounting:
Cord Mounted
NEMA Rating:
5-15R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Water-Tight
Standard:
IP69K rating;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA WD-1, WD-6 And ANSI Standards;UL Listed, CSA Certified to Type 4, 4X, 12, 6, 6P
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Temperature Rating:
-40°C (without impact) to +60°C continuous
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.473 L
Manufactured By:
Hubbell Wiring Device-Kellems
