HBL HBL1223L by Hubbell Wiring Device-Kellems
- Part Number: HBL1223LW
- UPC: 00783585188645
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

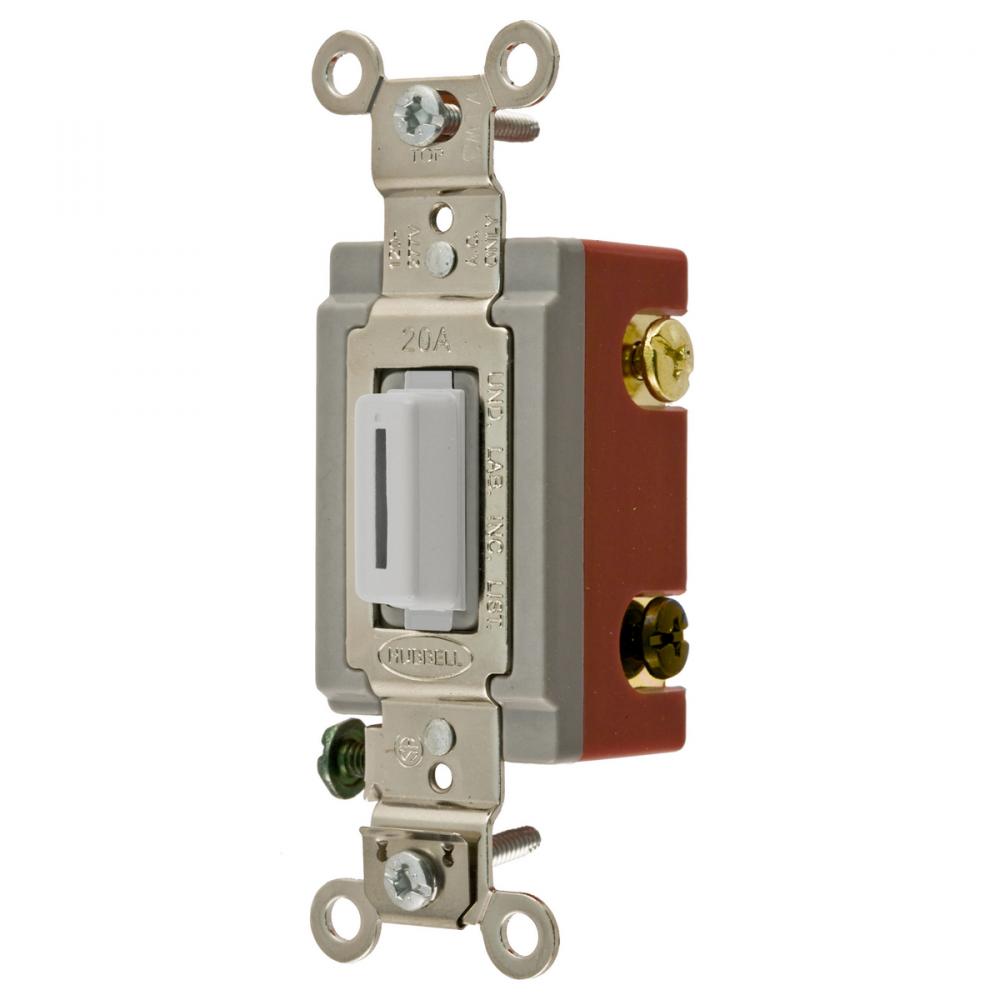

HWDK HBL1223LW 3 WAY TOG, IND GRD, 2 LOCK KEY SWITCH WHITE
Specifications
Details
Category:
Lighting Controls
Action:
SPDT
Actuator:
Double Ended Key
Amperage Rating:
20
Application:
Back and Side Wired
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Terminal Screws
Contact Configuration:
2-Position
Contact Rating:
Full Rated
Country Of Origin:
CN
Enclosure:
None
Indicator:
Dot Indicates On
Installation Link:
Line Drawing Link:
Load:
Inductive or Resistive
Lock Type:
Non-Cylindrical
Material:
Composite
Mounting:
Mounting Screws
Size:
4.06 in x 1.31 in x 1.13 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
AC Toggle Switches
Tech Drawing Link:
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Locking
UNSPSC:
39122224
Voltage Rating:
120-277
Warranty Link:
Wattage:
5540
Weight:
.250 L
Manufactured By:
Hubbell Wiring Device-Kellems
