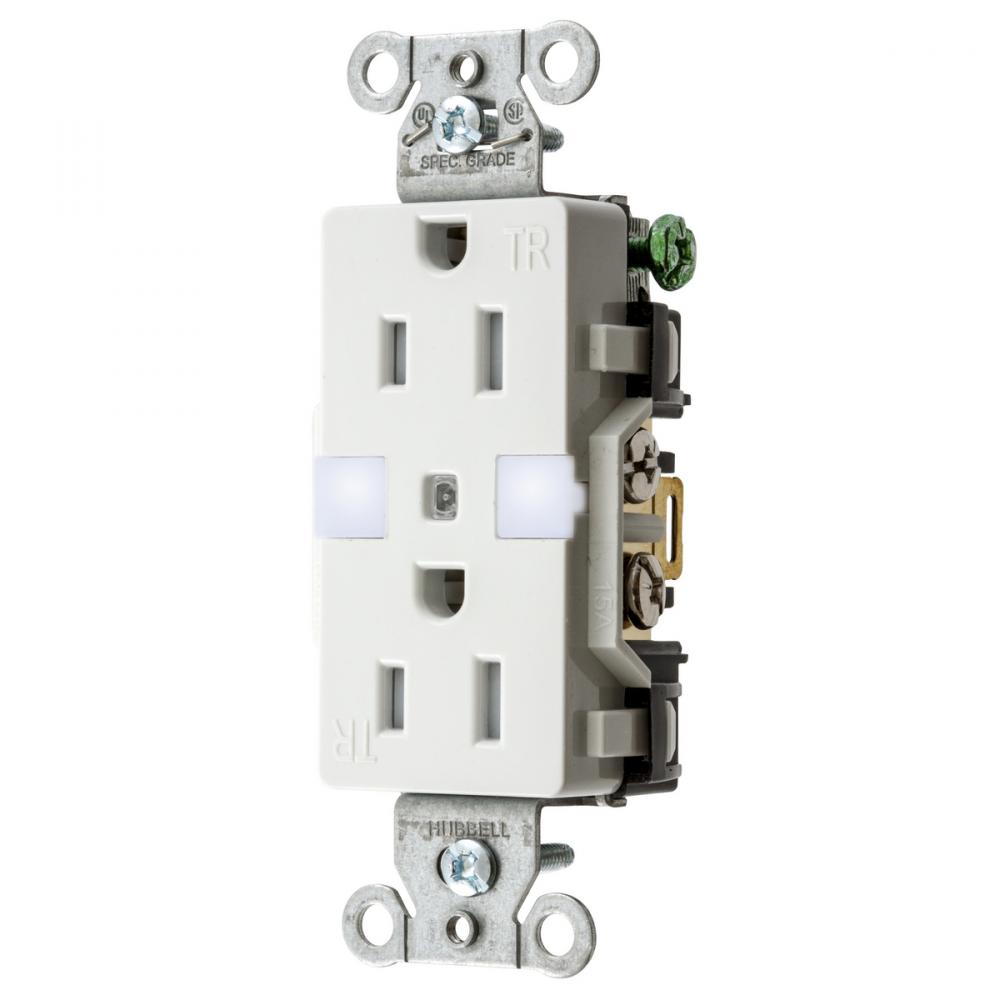

HBL DR15NLWH by Hubbell Wiring Device-Kellems
- Part Number: DR15NLWH
- UPC: 00783585541341
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK DR15NLWH TAMP RES, DECO FACE, NL 5-15R WH
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Commercial Specification Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Terminal Screws
Country Of Origin:
CN
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Composite
Mounting:
Mounting Screws
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Phase:
Single Phase
Size:
3.29 in x 1.15 in x 1.29 in
Spec Sheet:
Special Features:
Tamper Resistant
Standard:
Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade
Type:
Decorator Duplex
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.200 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
