HBL CS8369L by Hubbell Wiring Device-Kellems
- Part Number: CS8369L
- UPC: 00783585320755
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

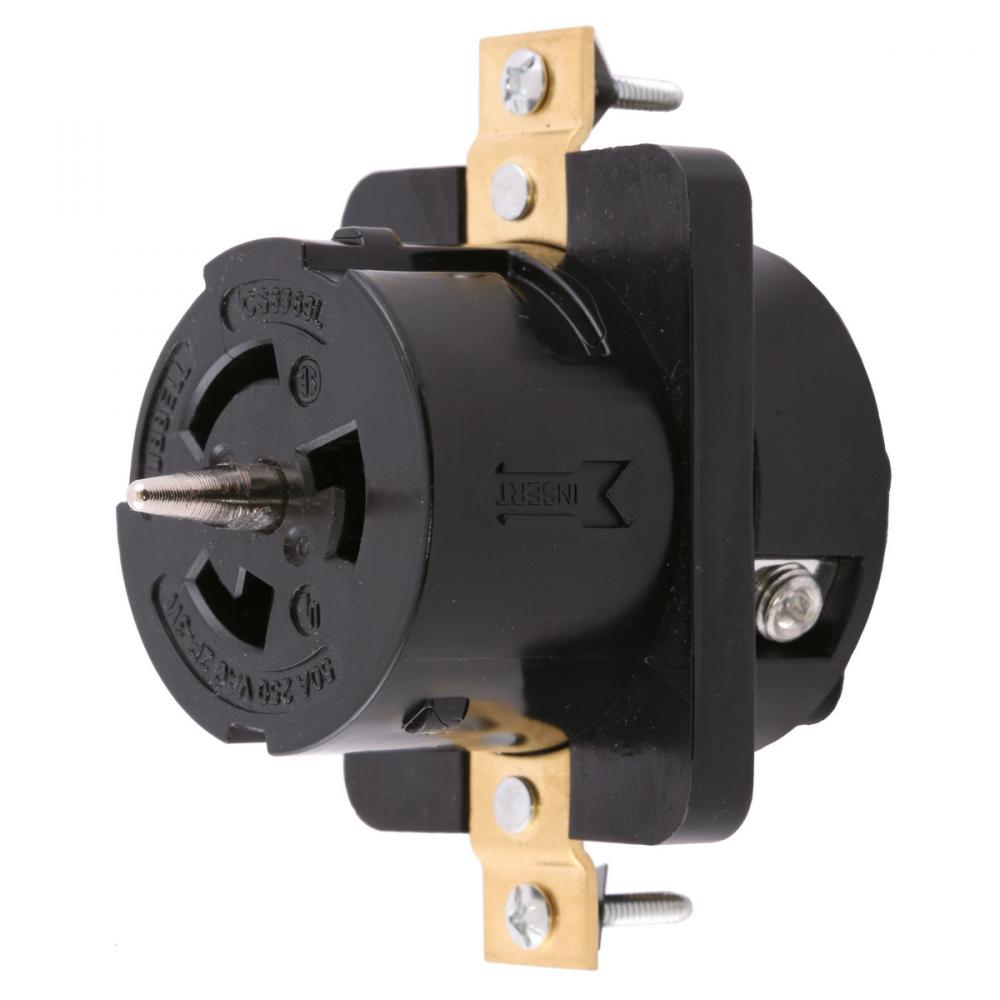

HWDK CS8369L LKG RCPT 50A 3P250V 3P4W
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
50
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#6 AWG
Connection:
Screw Terminals
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
4-Wire Grounding
Number Of Poles:
3-Pole
Size:
3.30 in x 2.10 in x 2.40 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL498
Sub Brand:
50A Twist-Lock
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Receptacle
UNSPSC:
39121421
Voltage Rating:
3 Phase 250
Weight:
.190 L
Manufactured By:
Hubbell Wiring Device-Kellems
