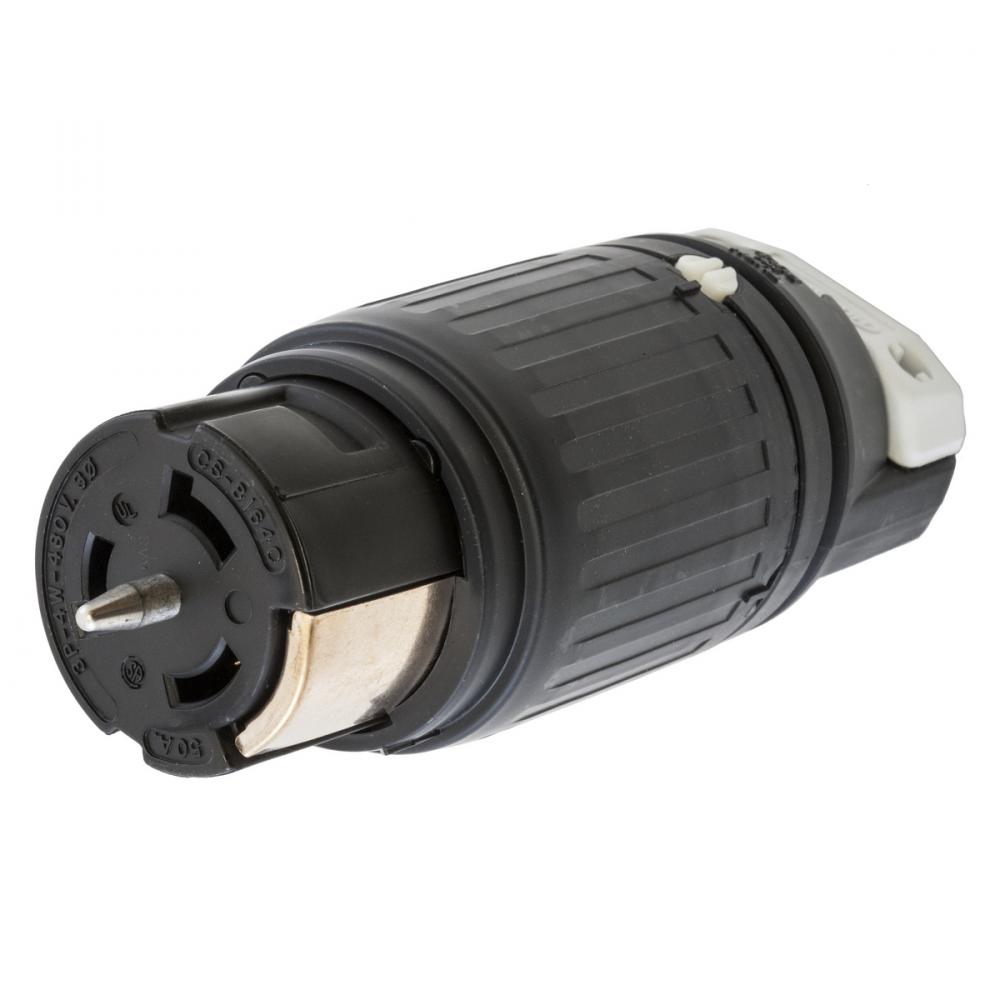

HBL CS8164C by Hubbell Wiring Device-Kellems
- Part Number: CS8164C
- UPC: 00783585828428
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK CS8164C LOCKING CONN, 50A 480V
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
50
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, White
Conductor Range:
#6AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
4-Wire Non-Grounding
Number Of Poles:
3-Pole
Size:
6.50 in x 2.56 in x 2.50 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
50A Twist-Lock
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
3-Phase Delta 480
Warranty Link:
Weight:
1.100 L
Manufactured By:
Hubbell Wiring Device-Kellems
