HBL AAR by Hubbell Wiring Device-Kellems
- Part Number: AAR
- UPC: 00783585392653
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

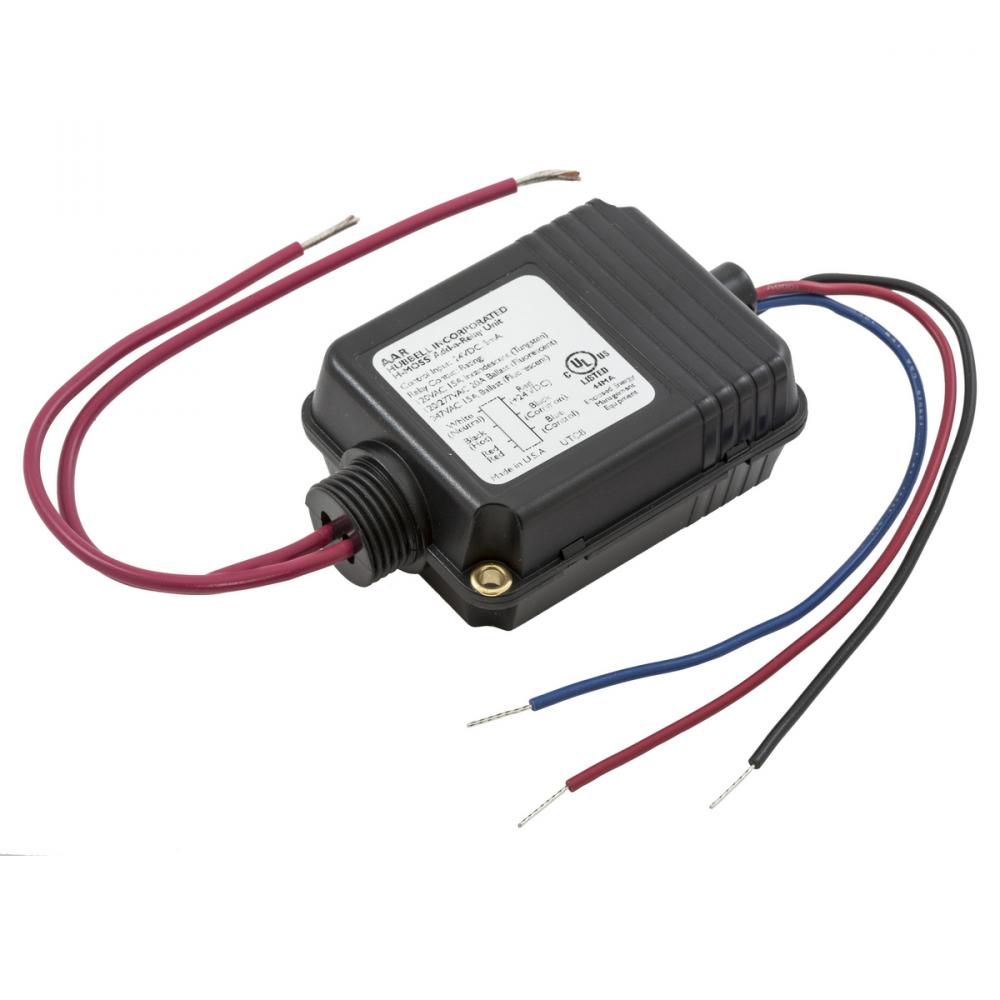

HWDK AAR ADD-A-RELAY
Specifications
Details
Category:
Lighting Controls
Application:
For Extra Load Capacity
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connector:
Wire Leads
Control Output:
Relay Contacts
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Load:
Incandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts230V Ballast- 0 to 3680 Watts277V Ballast- 0 to 5540 Watts347V Ballast- 0 to 5205 Watts
Mounting:
Screw Mount
Operating Cycles:
6,000 Cycles Minimum
Operating Temperature:
32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Spec Sheet:
Special Features:
Add-a-Relay
Standard:
ASHRAE 90.1 Compliant;cULus Listed To UL916
Sub Brand:
HMOSS
Type:
Accessories
UNSPSC:
39122236
Warranty Link:
Weight:
.550 L
Manufactured By:
Hubbell Wiring Device-Kellems
