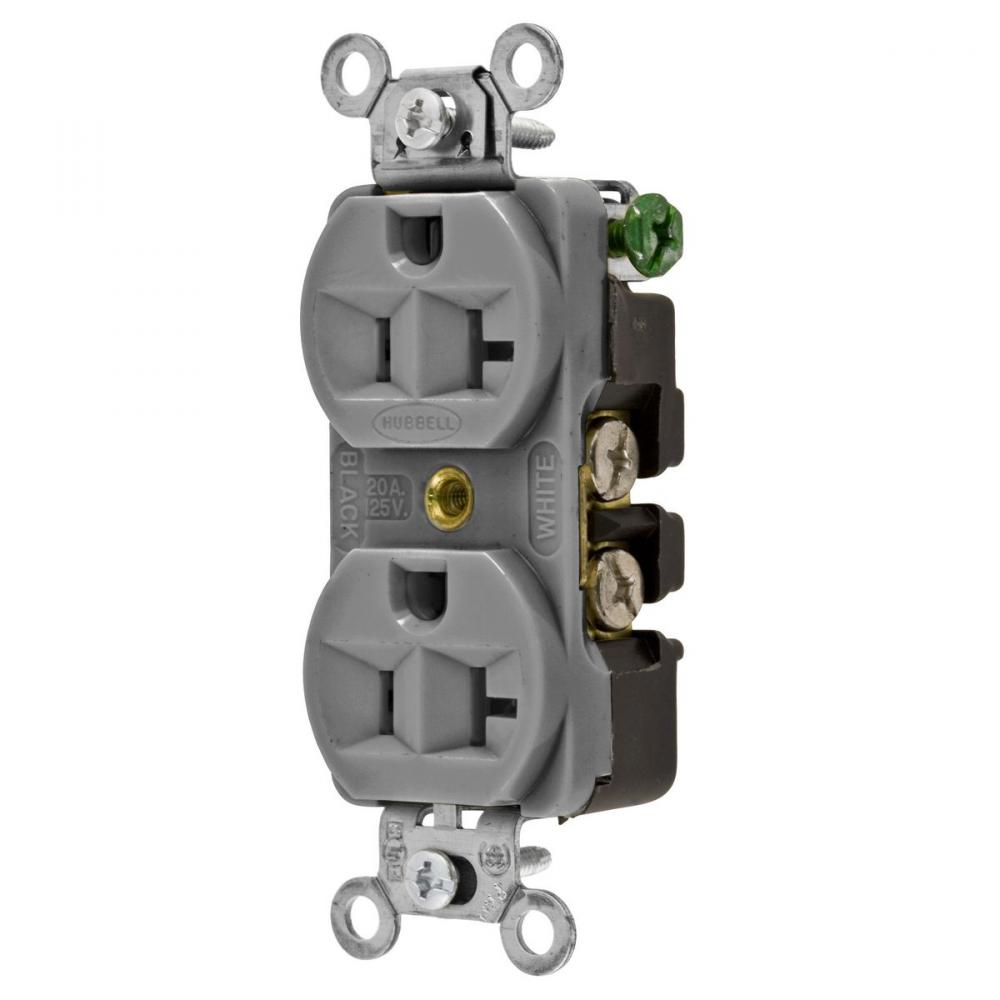

HBL 5362G by Hubbell Wiring Device-Kellems
- Part Number: 5362G
- UPC: 00783585834993
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
HWDK 5362G RCPT, DUP SB, HUBPRO, 20
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Hubbell-Pro Extra Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Back and Side Wired
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Self Grounding
Standard:
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Temperature Rating:
Maximum continuous 75°C; minimum -40°C (w/o impact)
Type:
Standard Duplex
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.082 L
Wire Size:
#12 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
