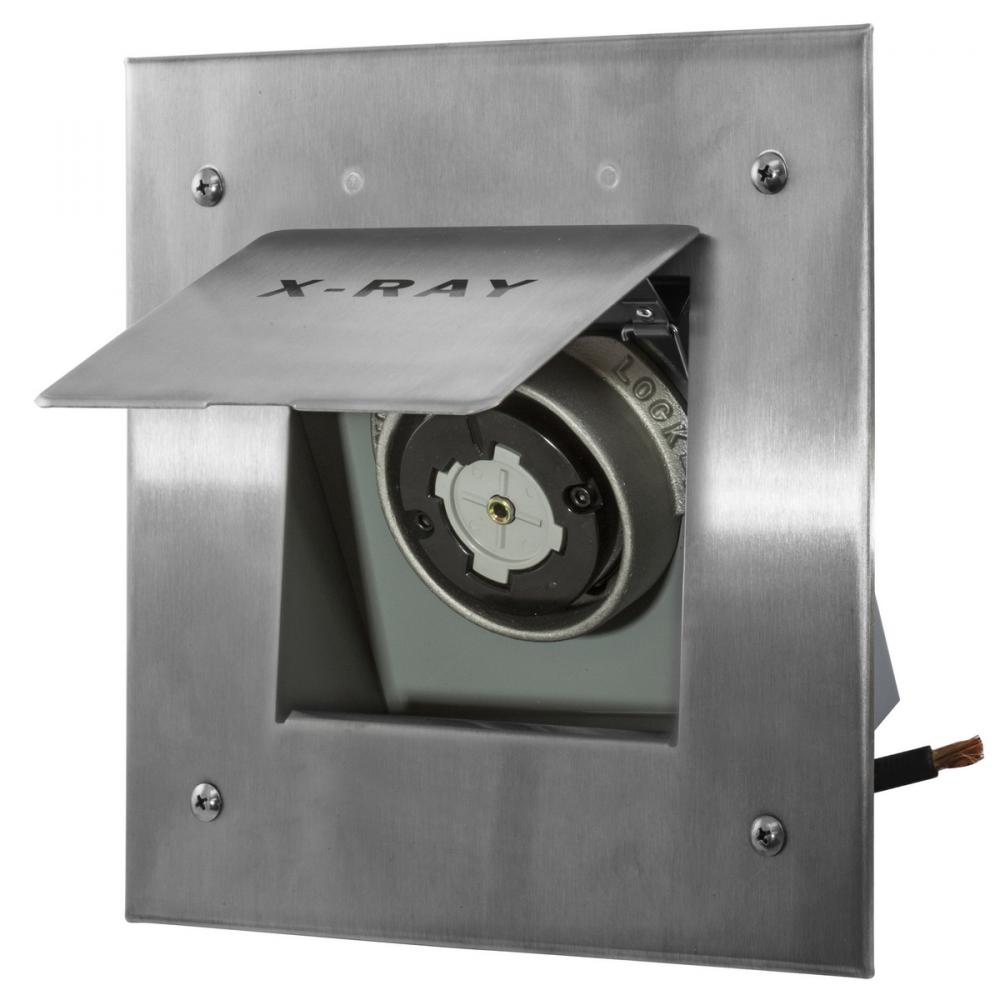

H/LOCK RCPT, 2P3W, 50A 250V, X-RAY, SS by Hubbell Wiring Device-Kellems
- Part Number: HBL25505
- UPC: 00783585016030
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Hubbellock, Mobile X- Ray, Receptacle, 50A 250V 2-Pole 3-Wire Grounding, Non NEMA, Screw Terminal
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
50
Application:
Mobile X-Ray Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black, Gray
Connection:
Pressure Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
With Cast Aluminum Plate
Standard:
UL 498
Sub Brand:
Hubbellock Devices
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
250V kV
Warranty Link:
Wattage:
12,500
Weight:
4.700 L
Wire Size:
#4 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
