H/LOCK CONN, 4P5W, 60A 600V by Hubbell Wiring Device-Kellems
- Part Number: HBL26516
- UPC: 00783585017501
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

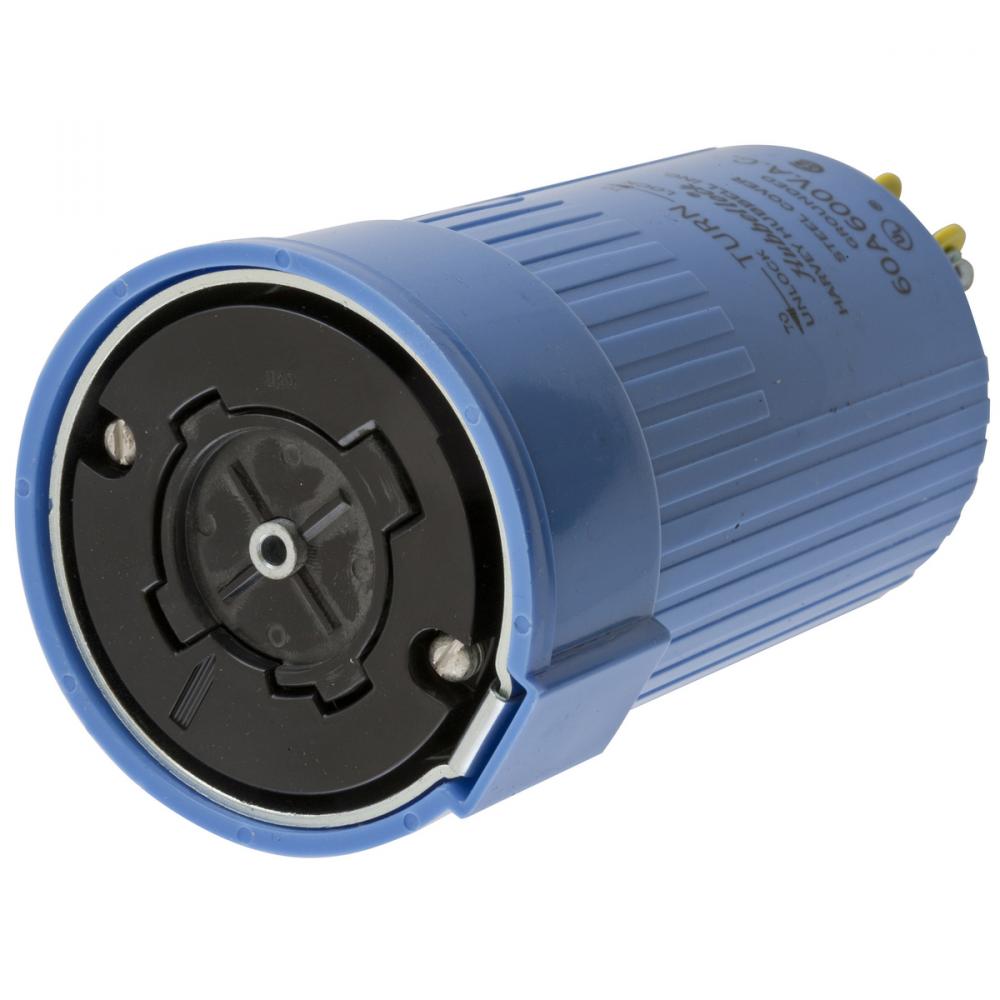

Hubbellock® Industrial Female Connector Body, 60A 600V AC, 4-Pole 5-Wire Grounding phenolic interior, Non NEMA, Screw Terminal thermoplastic sleeve over Steel cover
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
60
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Blue
Conductor Range:
#6AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Steel
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
5-Wire Grounding
Number Of Poles:
4-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
3.19 in x 1.09 in x 5.44 in
Spec Sheet:
Special Features:
Standard Product
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
Hubbellock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
600
Warranty Link:
Weight:
2.400 L
Manufactured By:
Hubbell Wiring Device-Kellems
