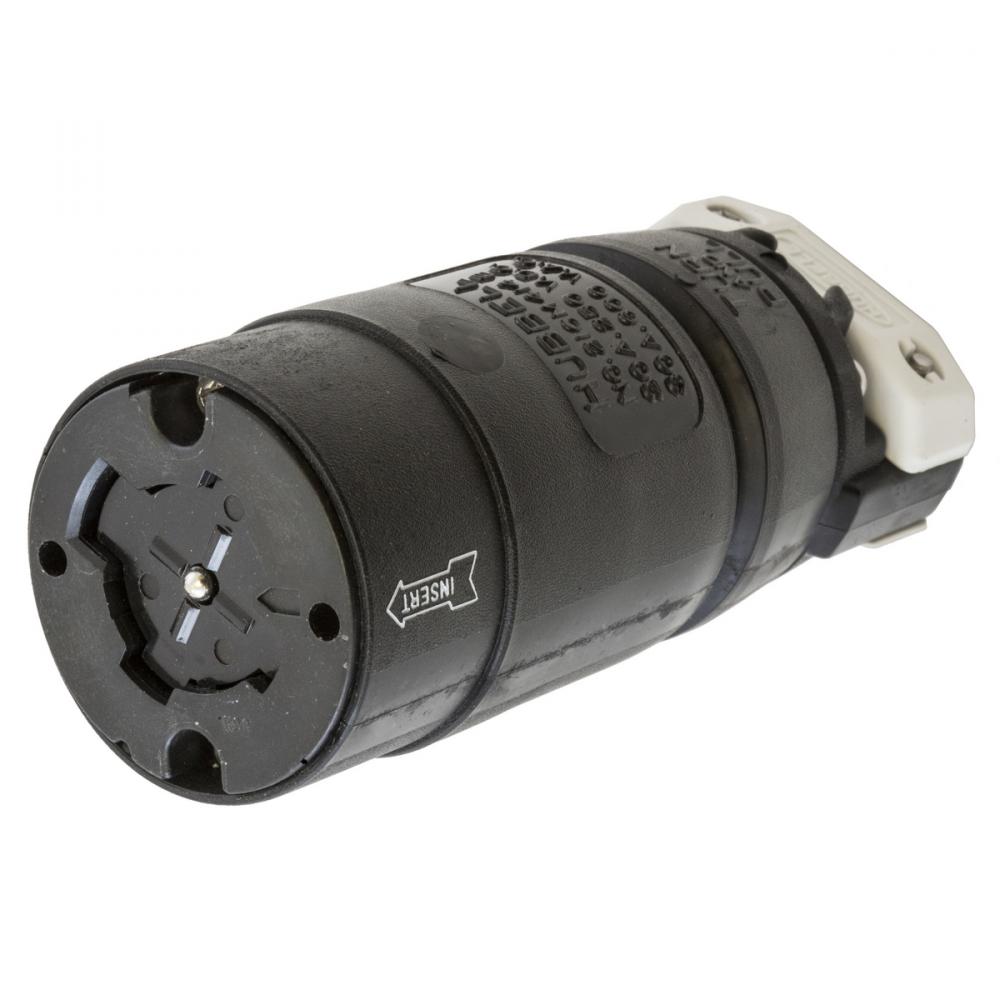

H/LOCK CONN, 3P4W, 30A 600V, CM VERSION by Hubbell Wiring Device-Kellems
- Part Number: HBL21CM414B
- UPC: 00783585017570
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Hubbellock® Industrial Female Connector Body, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding nylon housing, Thermoplastic interior, Corrosion resistant, Non-NEMA, Screw Terminal
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20/30
Application:
Heavy Duty Industrial/Marine
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#12AWG to #8AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
US
Environmental Conditions:
Corrosion resistant
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
3-Wire Non-Grounding
Number Of Poles:
3-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
6 in x 2.44 in x 2.44 in
Spec Sheet:
Special Features:
Corrosion Resistant
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
Hubbellock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
250 VDC/600
Warranty Link:
Weight:
1.100 L
Manufactured By:
Hubbell Wiring Device-Kellems
