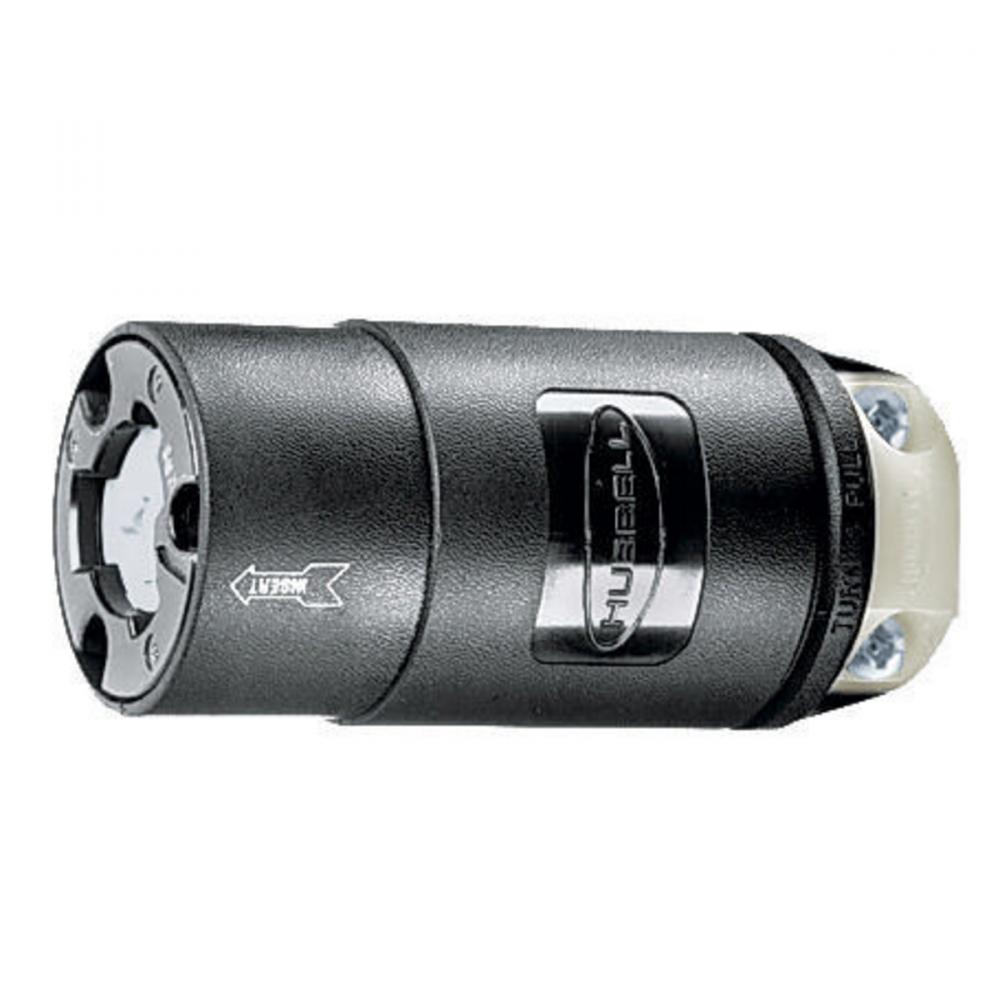

H/LOCK CONN, 2P3W, 20A 125V HOSP USE by Hubbell Wiring Device-Kellems
- Part Number: HBL23001HGB
- UPC: 00783585015729
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Hubbellock, Hospital Use, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
For Hospital Use
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#14 AWG to #12 AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Standard Product
Standard:
UL498
Sub Brand:
Hubbellock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Standard
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.350 L
Manufactured By:
Hubbell Wiring Device-Kellems
