DUP RCPT, TAMP-RES, 20A 125V, 5-20R, GY by Hubbell Wiring Device-Kellems
- Part Number: HBL8300SGGYA
- UPC: 00783585152295
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

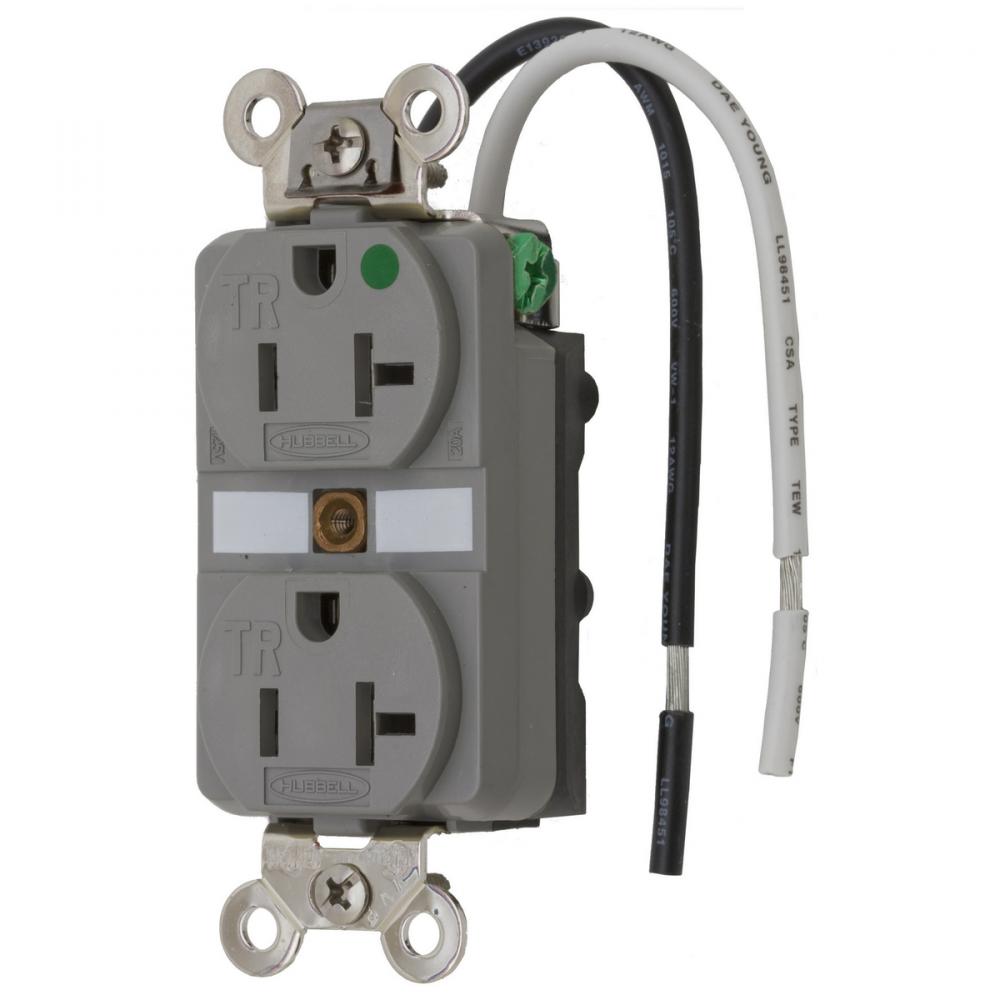

Straight Blade Duplex Receptacle, Safety Grade Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Extra Heavy Duty Hospital Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
CN
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.29 in x 1.65 in x 1.27 in
Spec Sheet:
Special Features:
Tamper Resistant
Standard:
CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade Devices
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.300 L
Wire Size:
#12 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
