DUP IG, RCPT, CONST GRD, 15A 125V, WH by Hubbell Wiring Device-Kellems
- Part Number: CR5252IGW
- UPC: 00783585387062
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

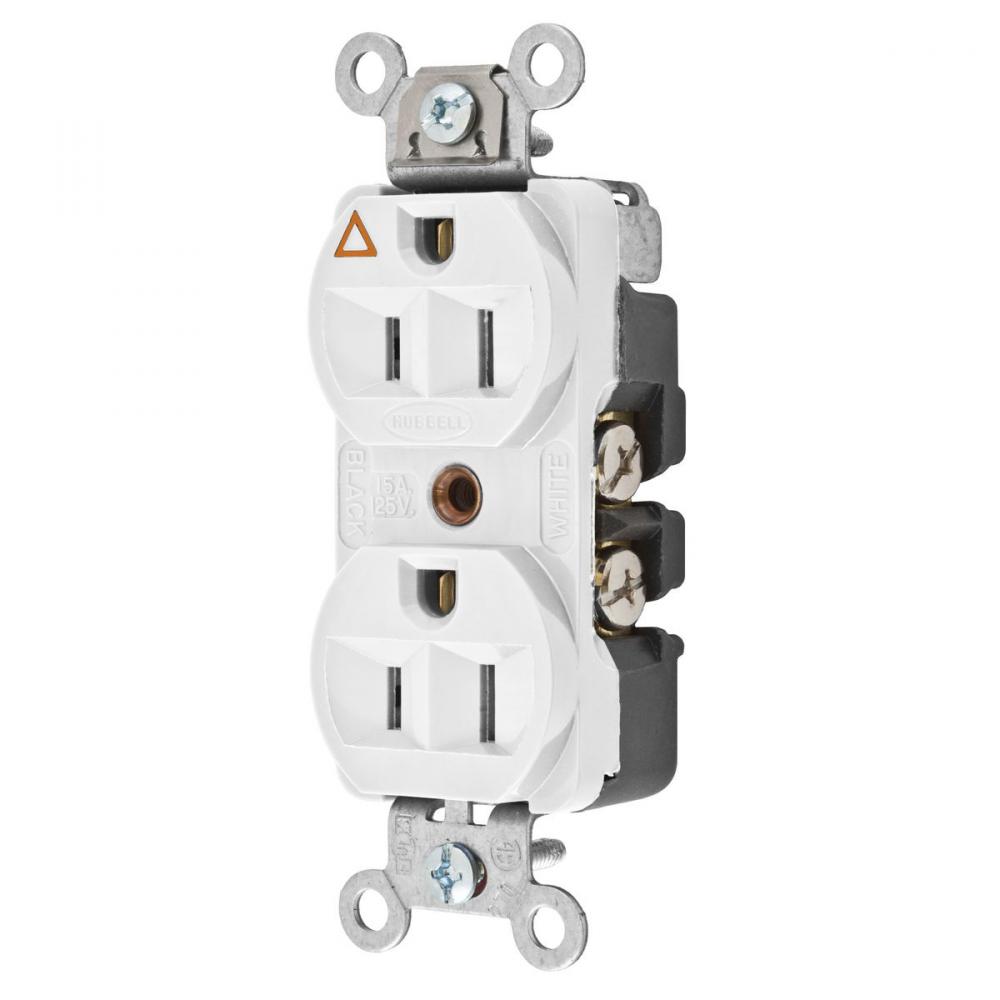

Straight Blade Devices, Receptacles, Duplex, Hubbell-Pro Heavy Duty, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack, Isolated Ground.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Hubbell-Pro Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
10.000 EA
Order Multiple:
10.000 EA
Phase:
Single Phase
Size:
3.28 in x 1.33 in x 1.05 in
Spec Sheet:
Special Features:
Isolated Ground
Standard:
Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade Devices
Type:
Isolated Ground
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.220 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
