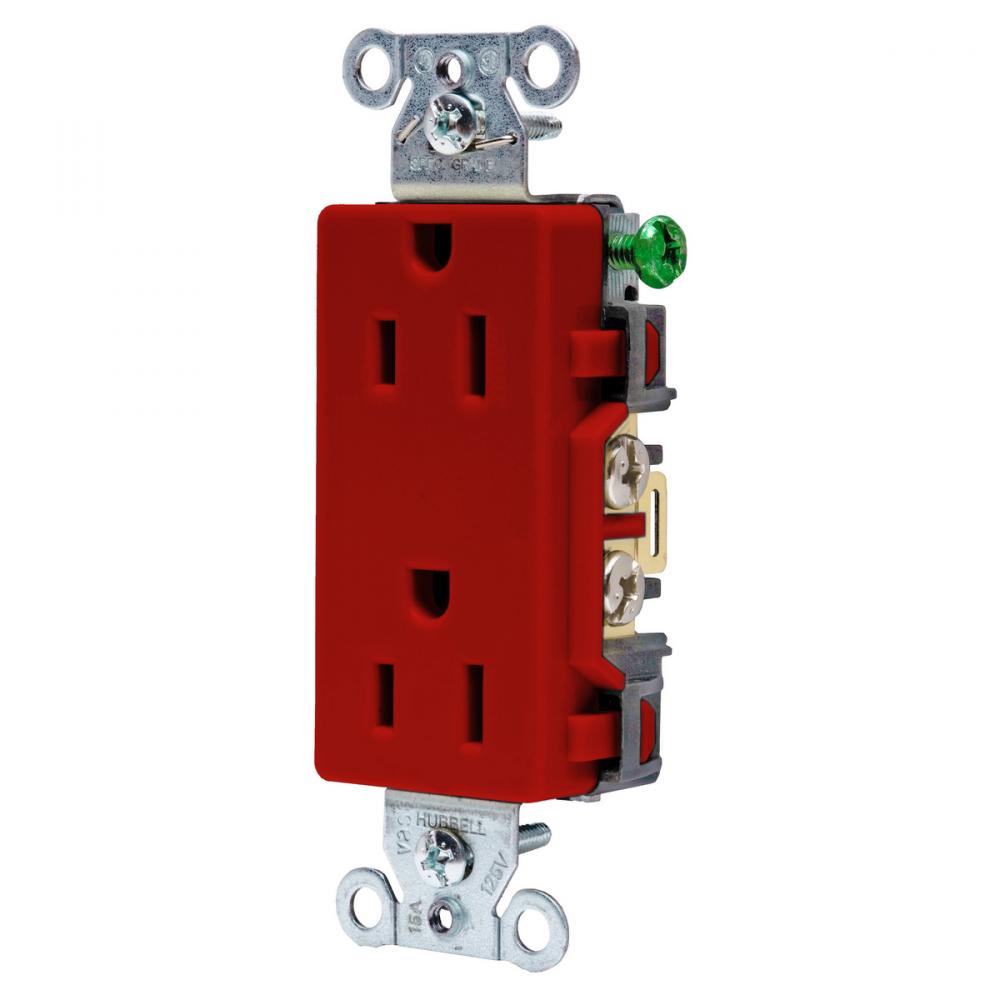

DECO RCPT, COMM GRD, 15A 125V, 5-15R, R by Hubbell Wiring Device-Kellems
- Part Number: DR15R
- UPC: 00783585197685
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Decorator Duplex Receptacle, Commercial Grade, Smooth Face, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Side Wired Only, Red.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Commercial Specification Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Connection:
Back and Side Wired
Country Of Origin:
CN
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
1.29 in x 1.06 in x 3.28 in
Spec Sheet:
Special Features:
Self Grounding
Standard:
Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade Devices
Type:
Standard Duplex
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.150 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
