![CORDCON, 45 ML, 1.0-1.13", 1 1/4", ALU](/vendors/3920/large/WBP_VHC1052_PRODIMAGE_1200.jpg "CORDCON, 45 ML, 1.0-1.13", 1 1/4", ALU")

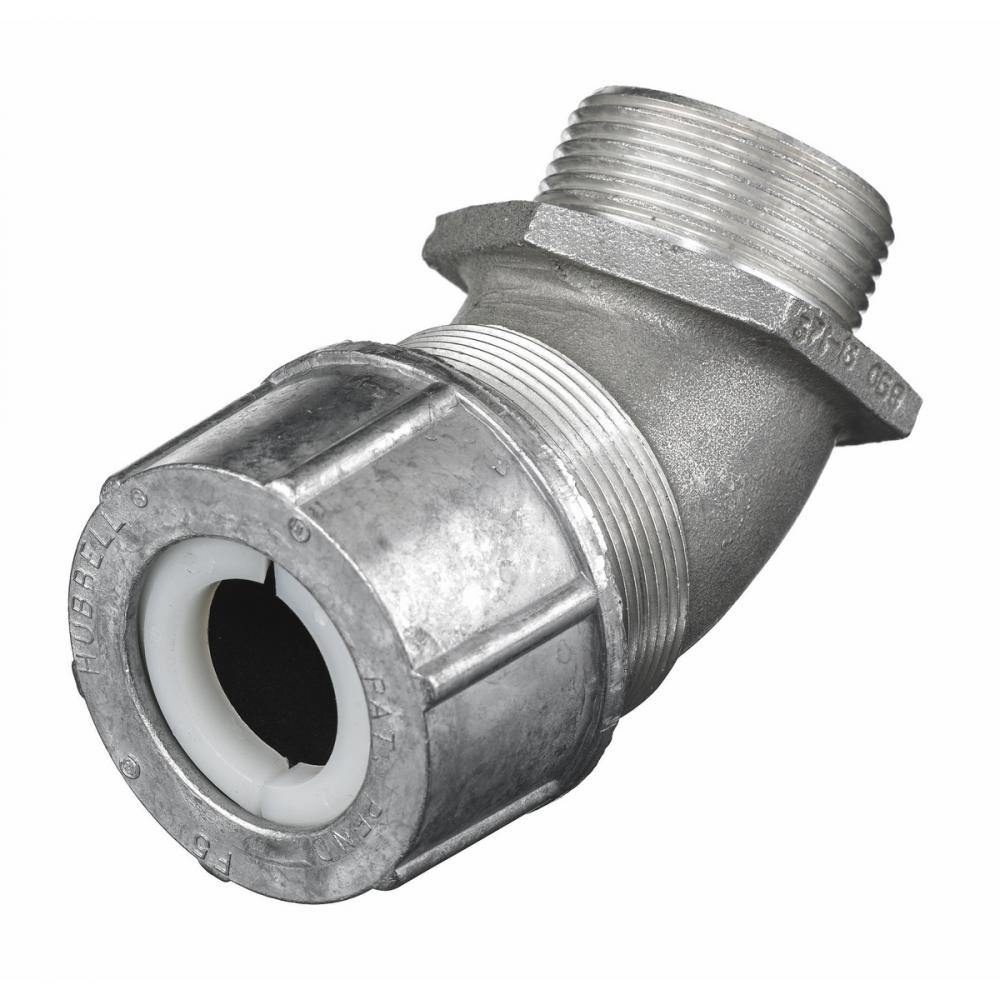

CORDCON, 45 ML, 1.0-1.13", 1 1/4", ALU by Hubbell Wiring Device-Kellems
- Part Number: VHC1052
- UPC: 00783585202525
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Kellems Wire Management, Cord Connectors, 45 Degree Male, 1.00-1.13", 1 1/4", Aluminum
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
45 Degree Male- Form 5
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Conductor Range:
1-1.13 in (25.4- 28.6 mm)
Country Of Origin:
US
Environmental Conditions:
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Finish:
Machined
Material:
Aluminum, Cast
Mounting:
Locknut or Tapped Opening
NEMA Rating:
NEMA Type 4, 4X, 12 and 13
Number Of Conductors:
Single
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
1 1/4" NPT
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
Kellems Wire Management
Temperature Rating:
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Type:
45 Degree Male
UNSPSC:
39121431
Warranty Link:
Weight:
.500 L
Manufactured By:
Hubbell Wiring Device-Kellems
