CONN,W/TIGHT,3PY 30A 120/208V,L21-30R,BK by Hubbell Wiring Device-Kellems
- Part Number: HBL29W81BK
- UPC: 00783585131931
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

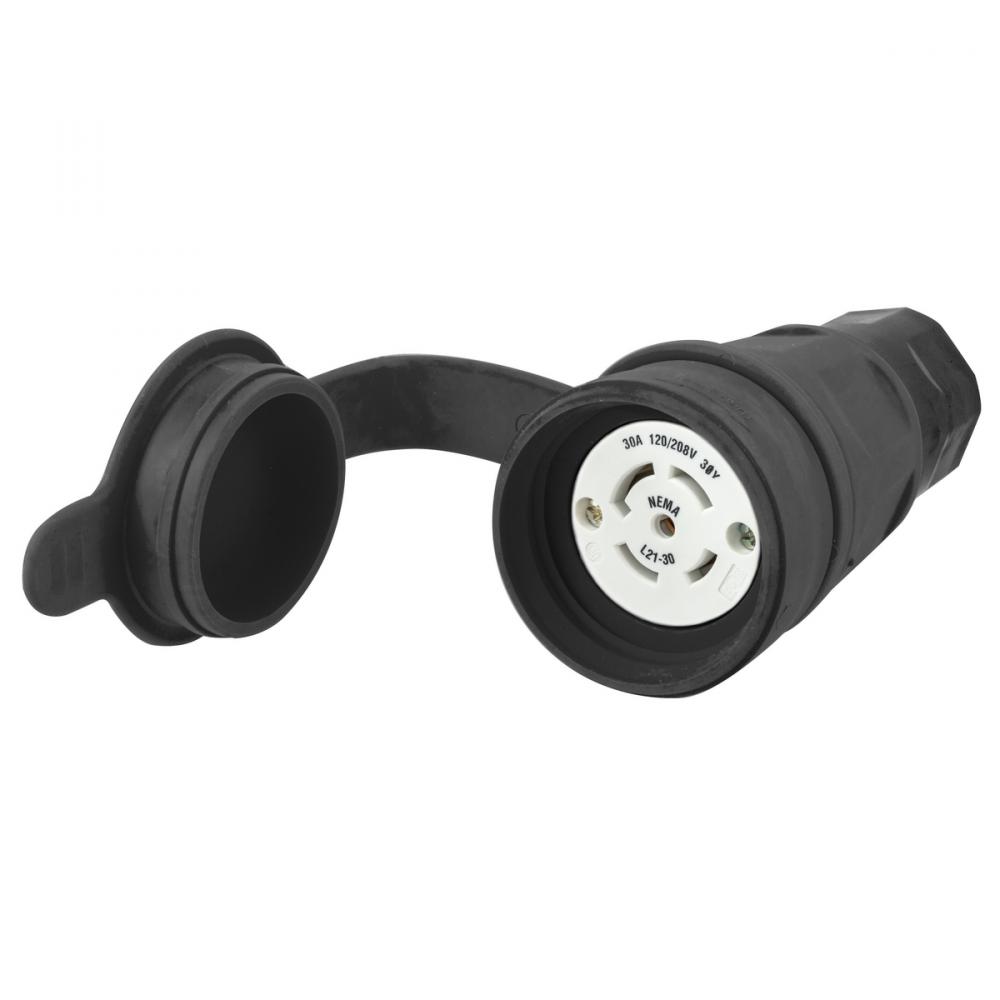

Watertight Twist-Lock® Connector, 30A, 3 Phase WYE 120/208V AC, 4-Pole, 5 Wire, Thermoplastic elastomer, NEMA L21
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
30
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#14AWG to #10AWG
Connection:
Terminal Screws
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Elastomeric/Composite
Mounting:
Cord Mounted
NEMA Rating:
L21-30R
Number Of Conductors:
5-Wire Grounding
Number Of Poles:
4-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.77 in x 2.77 in x 5.67 in
Spec Sheet:
Special Features:
Watertight
Standard:
Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Temperature Rating:
30°C max per UL498 at rated current
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
3-Phase Y 120/208
Warranty Link:
Weight:
.300 L
Manufactured By:
Hubbell Wiring Device-Kellems
