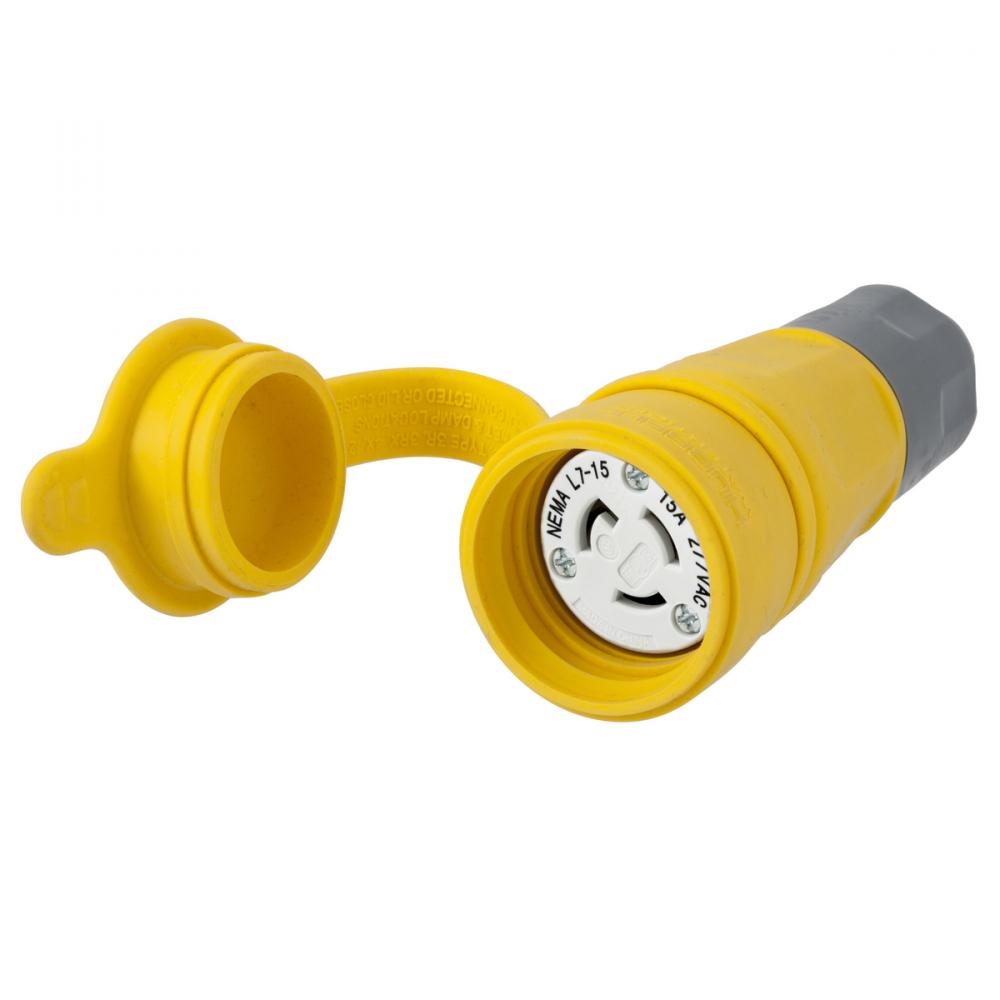

CONN, W/TIGHT, L7-15R, 15A, 277VAC by Hubbell Wiring Device-Kellems
- Part Number: HBL25W34
- UPC: 00783585131313
- Availability:
Product Overview
Watertight Devices, Twist-Lock® Connector, 15A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-15R, Yellow
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#14AWG to #12AWG
Connection:
Terminal Screws
Country Of Origin:
CN
Environmental Conditions:
Water Tight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Elastomer/Composite
Mounting:
Cord Mounted
NEMA Rating:
L7-15R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
1.85 in x 1.85 in x 4.62 in
Spec Sheet:
Special Features:
Watertight
Standard:
Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
277
Warranty Link:
Weight:
.400 L
Manufactured By:
Hubbell Wiring Device-Kellems
