CONN, W/TIGHT, 5-15R, 15A, 125V, CL, WIR by Hubbell Wiring Device-Kellems
- Part Number: HBL15W47AWC
- UPC: 00783585580623
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

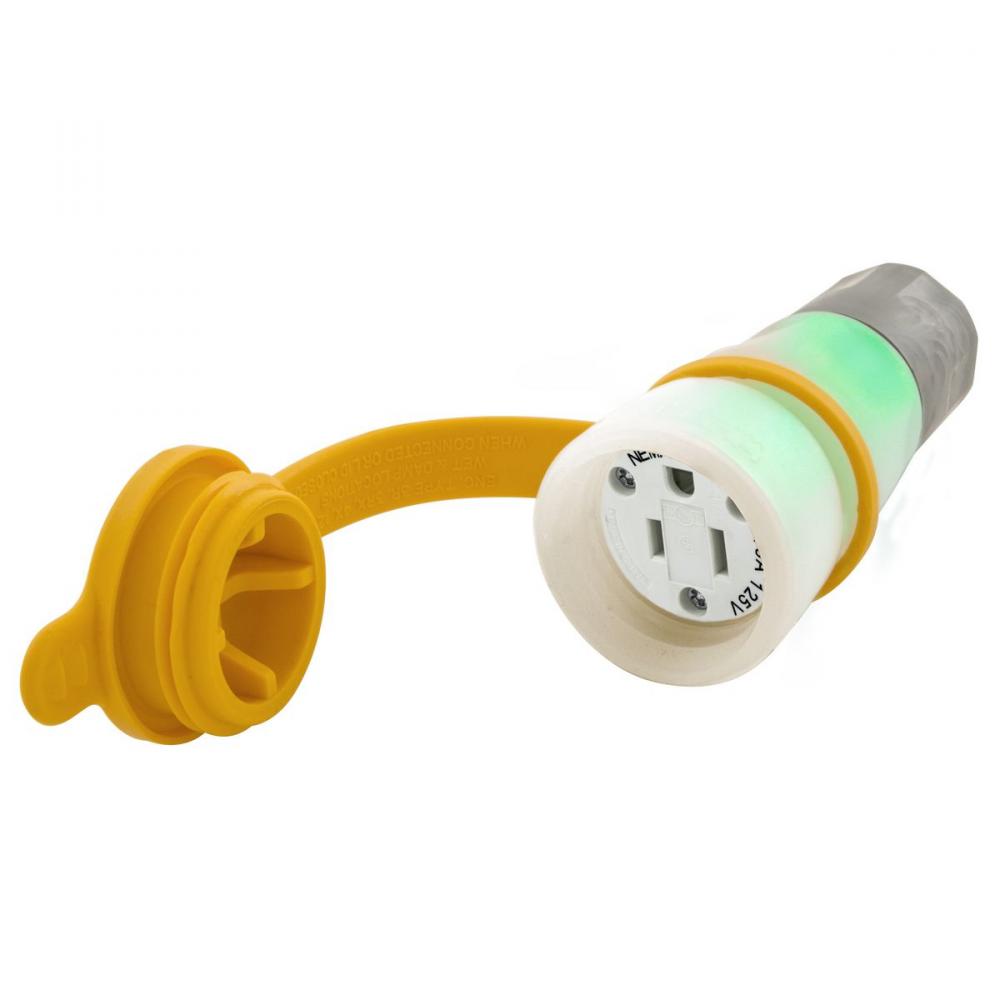

Straight Blade Watertight Clear Connector 15A, 5-15R 125V, Thermoplastic Elastomer
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Wet and Moist Environments
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Clear
Conductor Range:
#14AWG to #12AWG
Connection:
Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Material:
Elastomeric/Composite
Mounting:
Cord Mounted
NEMA Rating:
5-15P
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2 Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Illuminated
Standard:
Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Watertight Devices
Temperature Rating:
30 Degree Maximum per UL498 at Rated Current
Type:
Connector
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.350 L
Manufactured By:
Hubbell Wiring Device-Kellems
