CONN, MIDGET LKG ANG, ML-3R by Hubbell Wiring Device-Kellems
- Part Number: HBL7433
- UPC: 00783585237206
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

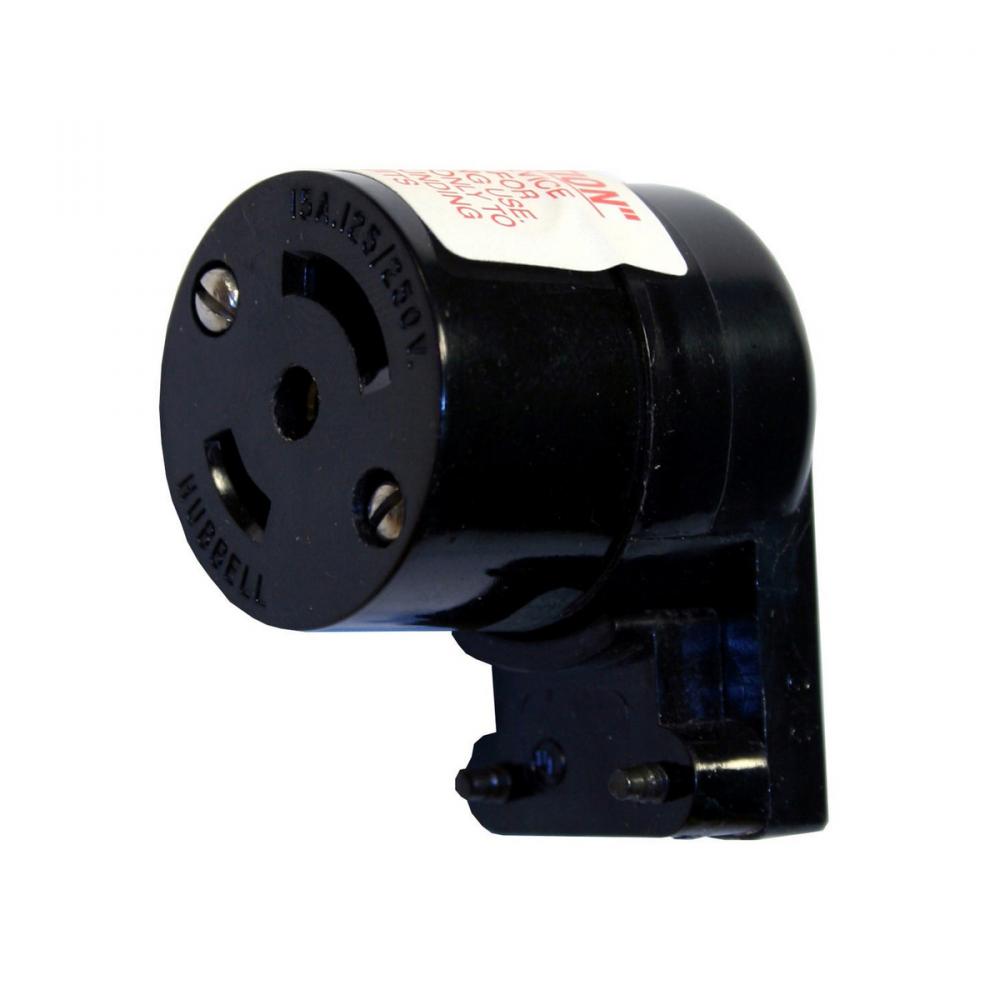

Locking Devices, Midget Twist-Lock®, Industrial, Female Connector, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3R, Screw Terminal, Black, Angled.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#14 AWG to #12 AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
Insulated Body
Line Drawing Link:
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
ML-3R
Number Of Conductors:
3-Wire Non-Grounding
Number Of Poles:
3-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
1.68 in x 1.17 in x 1.28 in
Spec Sheet:
Special Features:
Angled Body
Standard:
Certified to CSA C22.2 No.42;Listed to UL 498
Sub Brand:
Twist-Lock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125/250
Warranty Link:
Weight:
.100 L
Manufactured By:
Hubbell Wiring Device-Kellems
