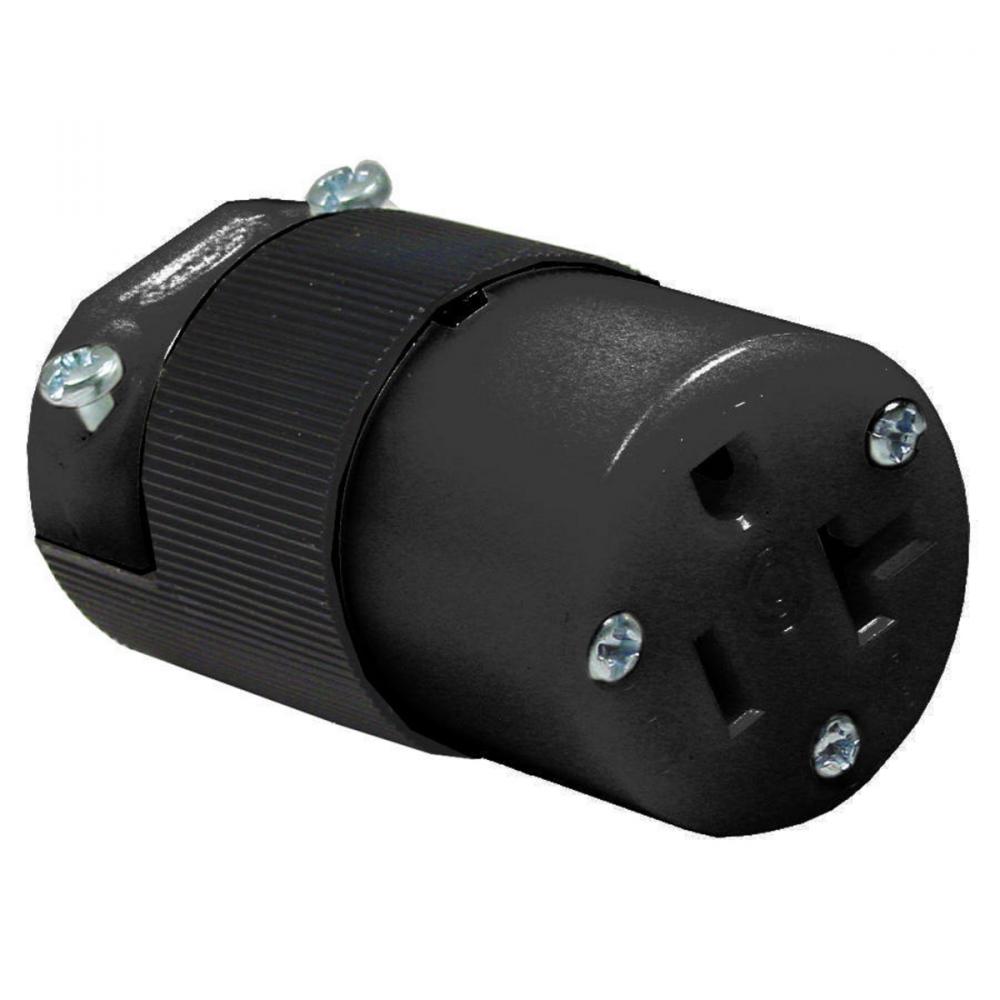

CONN, 20A 125V, 5-15R, 12/3 SO by Hubbell Wiring Device-Kellems
- Part Number: HBL5369EBK
- UPC: 00783585541396
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Straight Blade Devices, Female Connector, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 125V, 5-20R, Black, Single Pack, Rated for 12/3 SO.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#18 AWG to #10 AWG
Country Of Origin:
US
Installation Link:
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Standard:
CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.200 L
Manufactured By:
Hubbell Wiring Device-Kellems
