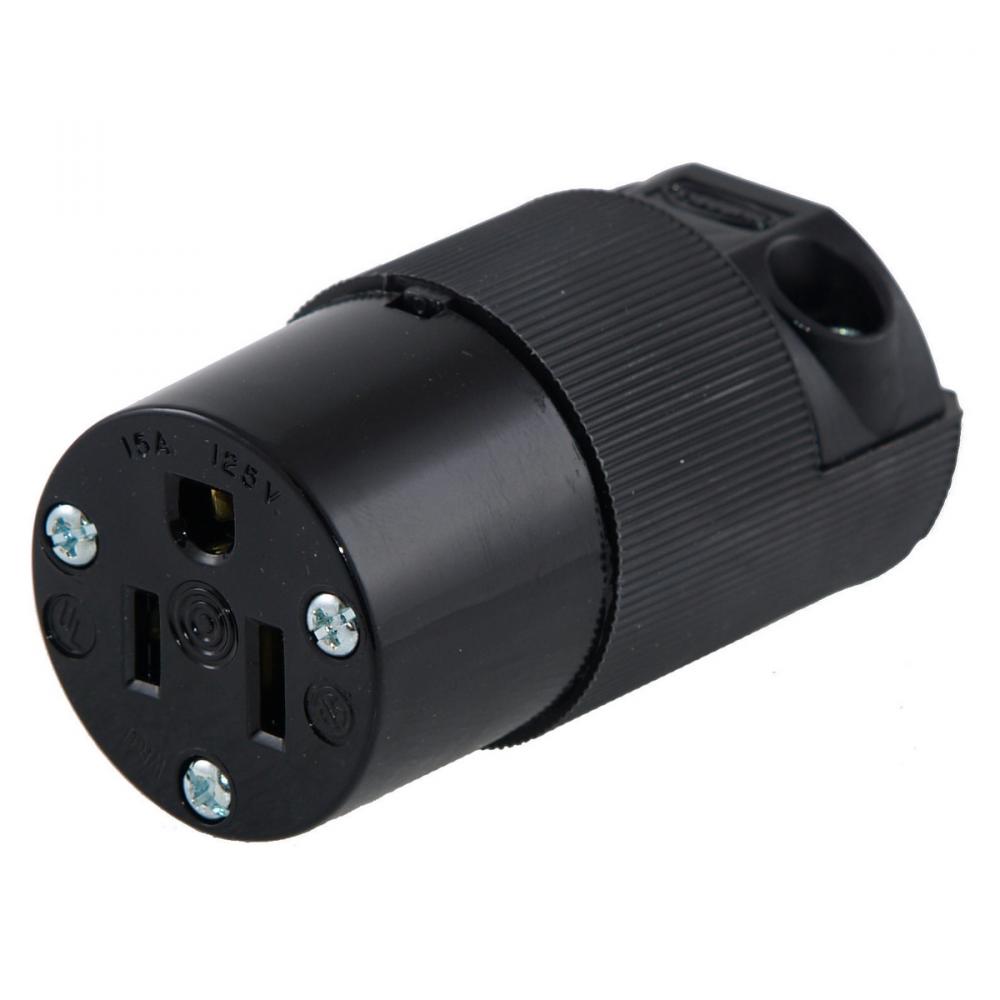

CONN, 15A 125V, 5-15P, 12/3 SO, BLACK by Hubbell Wiring Device-Kellems
- Part Number: HBL5269EBK
- UPC: 00783585366128
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 125V, 5-15R, Black, Single Pack, Extra Large.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
15
Application:
Industrial/Commercial Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#18 AWG to #10 AWG
Connection:
Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Material:
Polycarbonate
Mounting:
Cord Mounted
NEMA Rating:
5-15R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Entertainment Industry Version
Standard:
CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Sub Brand:
Straight Blade
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
125
Warranty Link:
Weight:
.200 L
Manufactured By:
Hubbell Wiring Device-Kellems
