CAT#HBL2420, MOD RING T by Hubbell Wiring Device-Kellems
- Part Number: HBL2420RT
- UPC: 00783585234458
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

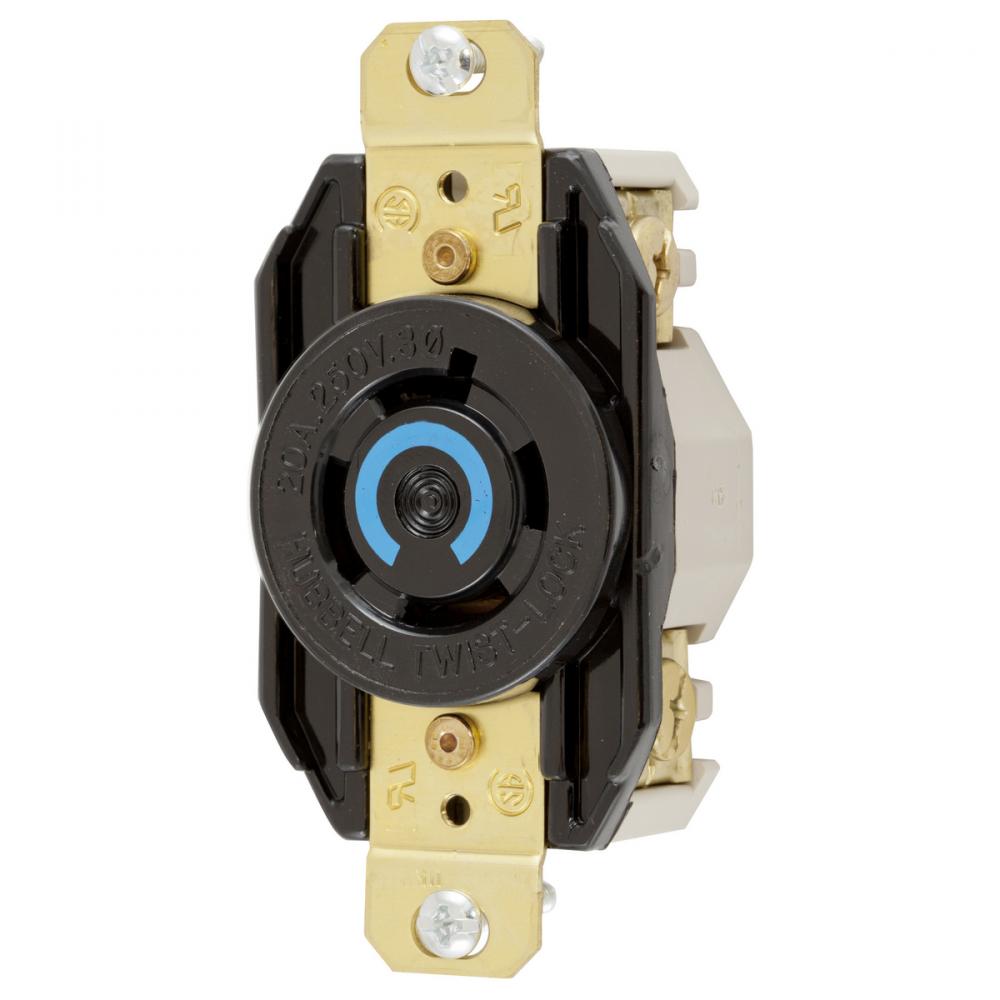

Locking Devices, Twist-Lock®, Single Flush Receptacle, 20A, 250V AC, 3-Pole, 4-Wire Grounding, Black
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Ring Terminal
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
L15-20R
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
2.37 in x 1.37 in x 1.23 in
Spec Sheet:
Special Features:
Accepts Ring Terminals
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
5,000
Weight:
.250 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
