![CAT# HBL7410B, ON A ROUND 4" BOX CVR](/vendors/3920/large/WBP_HBL7417B_PRODIMAGE_1200.jpg "CAT# HBL7410B, ON A ROUND 4" BOX CVR")

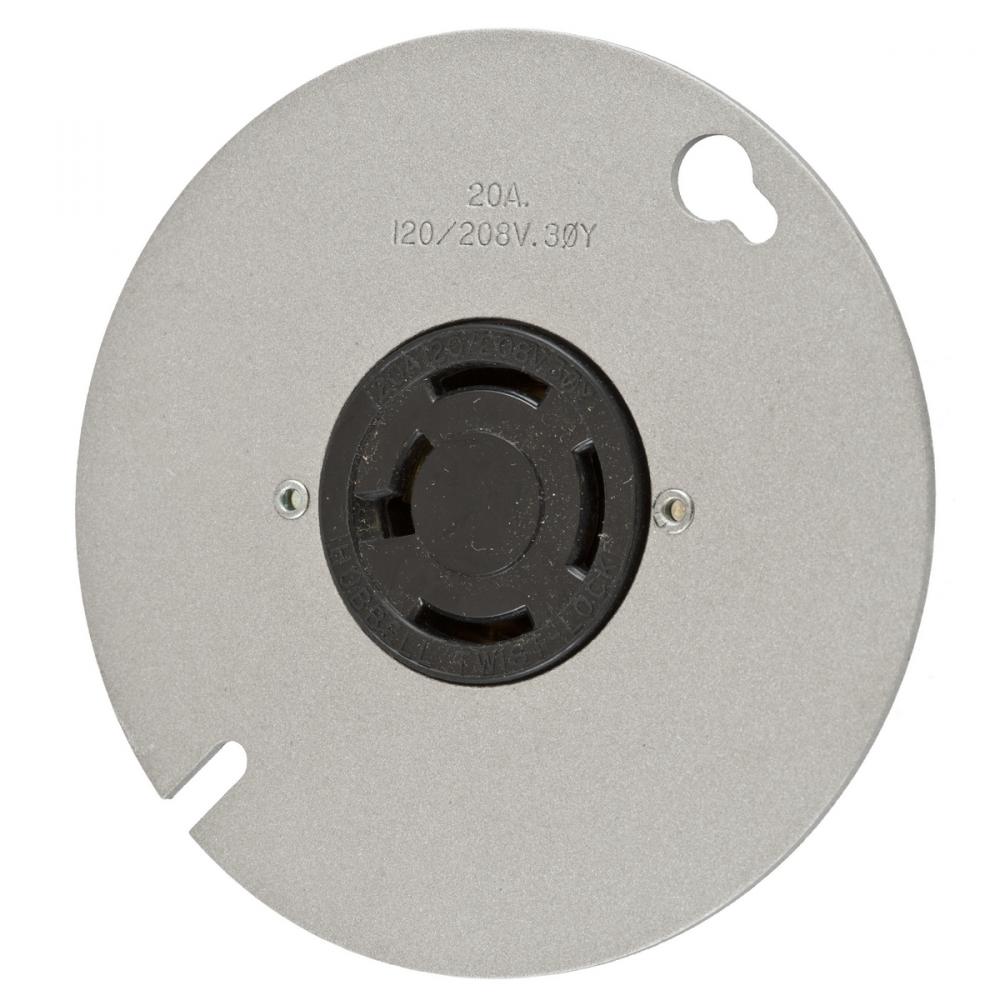

CAT# HBL7410B, ON A ROUND 4" BOX CVR by Hubbell Wiring Device-Kellems
- Part Number: HBL7417B
- UPC: 00783585333700
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Mounted on a 4" round metal cover, Black.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
4.14 in x 4.14 in x 1.28 in
Spec Sheet:
Special Features:
Standard
Standard:
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Sub Brand:
Twist-Lock Devices
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
3 Phase WYE 120/208
Warranty Link:
Wattage:
4,160
Weight:
.400 L
Wire Size:
#16 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
