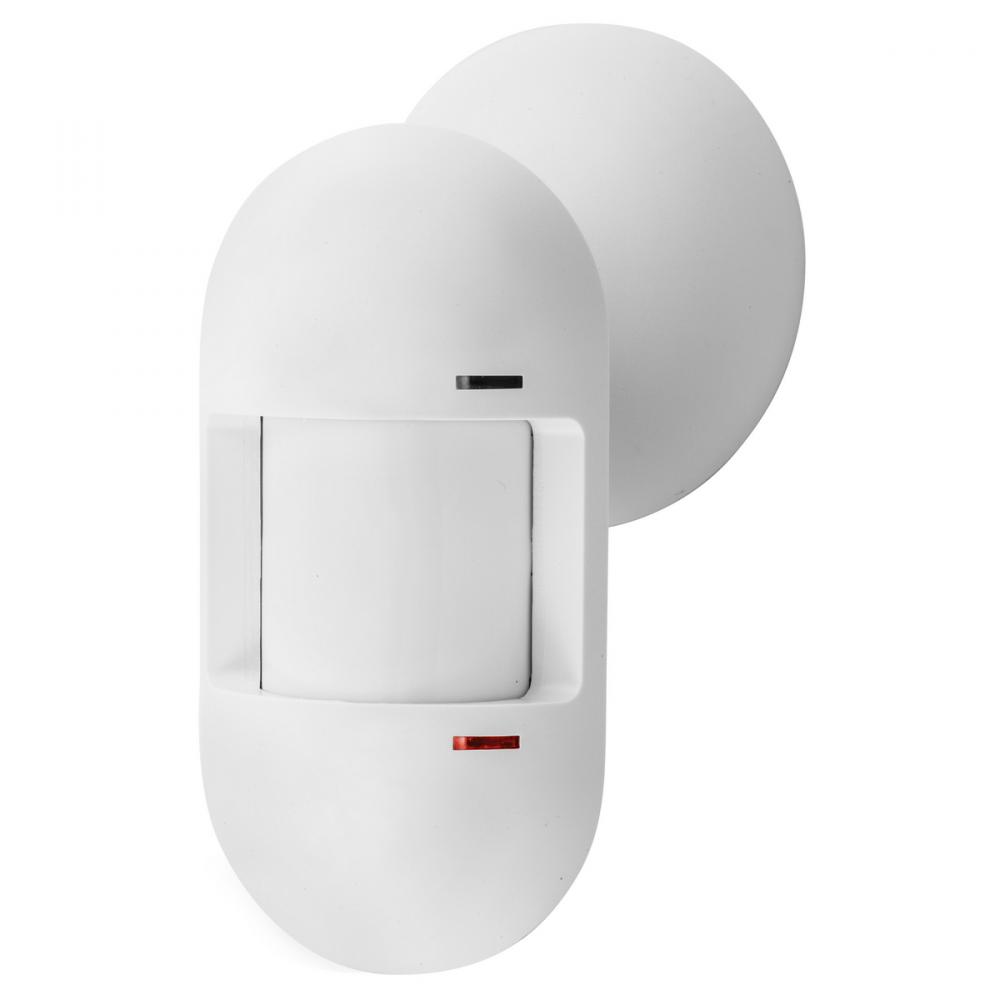

AT PIR OCCSENS, WALL, 1600 SQ FT,USA by Hubbell Wiring Device-Kellems
- Part Number: ATP1600WU
- UPC: 00783585159287
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Switches and Lighting Control, H-MOSS, Occupancy Sensor, Adaptive PIR, Wall Mount, 1600 Square Feet, With Relay
Specifications
Details
Category:
Lighting Controls
Application:
Wall Mount
Brand Name:
WIRING DEVICE-KELLEMS
Connector:
Wire Leads
Control Output:
Input Voltage
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Indicator:
PIR= Red LED
Installation Link:
Line Drawing Link:
Load:
Load Is A Function Of The Control Unit
Mounting:
Screw Mount
Operating Cycles:
6,000 Cycles Minimum
Operating Temperature:
32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Sensing Range:
42 to 54 Inches above the Floor
Sensitivity:
Adjustable W
Sensor:
Adaptive Passive Infrared
Special Features:
Adaptive Technology
Standard:
UL 20
Sub Brand:
HMOSS
Supply Voltage:
24V DC From Control Unit V
Target Size:
People in
Tech Drawing Link:
Type:
Ceiling and Wall Mount Sensors
UNSPSC:
39122236
Weight:
.600 L
Manufactured By:
Hubbell Wiring Device-Kellems
